Product name:MSM70SA

Application              MSM70SA
      Model MSM70SA three phase four wire electronic DIN rail active energy meter is a kind of new style three phase four wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net. This meter has seven digits LCD displays  communication module in it. Contact with all kind of AMR system conveniently It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. ZL 2012 3 0520870.3, any other country patent certificate are in assessing.


Functions and features
v MSM70SA series energy meters :  35mm standard DIN rail installation , complying with standard DIN EN50022.
v MSM70SA series energy meters : Four pole width (Modulus 17.5mm), complying with standard DIN43880.
v MSM70SA series energy meters : 8 digits display LCD, 7+1 digits display (9999999.1 kWh, )
v MSM70SA series energy meters : Five LED instructions respectively every power supply state, signal of closed energy impulse and distant energy impulse and data communication state.
v MSM70SA series energy meters : Automatic detection the direction of the flow of load current. And Instructions on individual LCD
v MSM70SA series energy meters : Single direction three components measure three phase four wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.
v MSM70SA series energy meters : Directly connect to use.type S connection(inlet from top,outlet from bottom)
v MSM70SA series energy meters : Extension terminals cover, in order to protect to use safety.

Technical parameters

Model

Accuracy

Reference

Voltage(V)

Current

specifications(A)

Starting

current(A)

Insulation

performance

MSM70SA

Class 1

3×127/220

3×230/400

5(40)A,10(60)A,   5(100)A,20(100)A

0.02

AC voltage 4kv for 1 minute, 1.2/50us  waveform impulse voltage 6kv

* If you need different reference voltage or current specification, please advisory our sales .

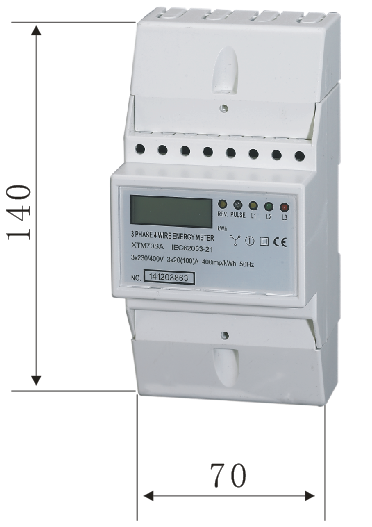

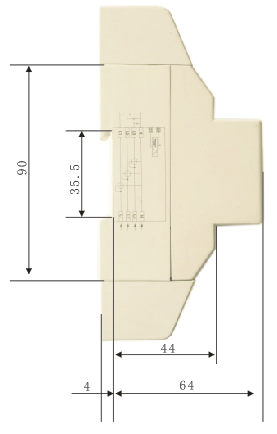

Outer and mount dimension

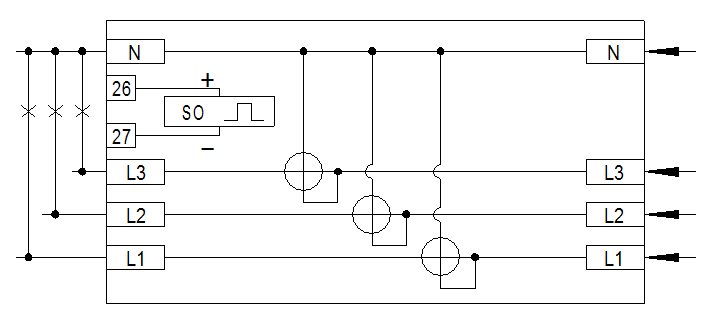

Wiring diagram (Type S)

Terminal

Note

L1

L1 phase wire

L2

L2 phase wire

L3

L3 phase wire

N

Neutral wire

26 and 27

Pulse output contact
