Application                       MSM1250S

The MSM1250S series power meters are DIN rail three phase active electronic energy meters. They adopt many advanced technologies of research and development for the power meters, like microelectronic-techniques, specialized large-scale IC (integrated circuit), digital sampling and processing technology, SMT technique, and so on. Their technical performances of power meters completely conform to International Standards IEC 62053-21 for Class 1 three phase active energy meter. MSM1250S series power meters can directly and accurately measure the load active energy consumption in the three phase AC networks of rated frequency 50Hz or 60Hz. The MSM1250S series power meters have multiple types for option, to be suitable with the various market demands. MSM1250S series power meters have features with excellent long-term reliability, small volume, light weight, perfect appearance, easy installation, etc.

Functions and Features

v MSM1250S series power meters; Available as35mmDIN standard rail mounted, conforming to Standards DIN EN 50022, as well as front PANEL mounted (the center distance between two mounting holes is63mm). Two mounted methods above are optional for users.

v MSM1250S series power meters; 10 pole width (modulus12.5mm), complying with Standards JB/T7121-1993.

v MSM1250S series power meters; Can select the step motor impulse register of 6 digits (999999kWh) .

v MSM1250S series power meters; Equipped with a polarity passive energy impulse output terminal, conforming to Standards IEC 62053-31 and DIN 43864.

v MSM1250S series power meters; LED sindicate separately the power state on each phase, the energy impulse signal and data communication state.

v MSM1250S series power meters; Automatic detection for the load current flow direction and will be indicated by LED.

vMSM1250S series power meters; Measure the active energy consumption in one direction on three phase, which is not related with the load current flow direction at all, complying with Standards IEC 62053-21.

v MSM1250S series power meters; The short terminal cover is made with the transparent PC, to reduce the installation space and is convenient for centralized installation.

* If you need different reference voltage or current specification, please advisory our sales personnel.

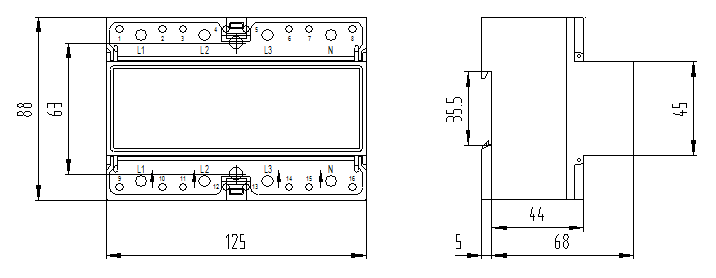

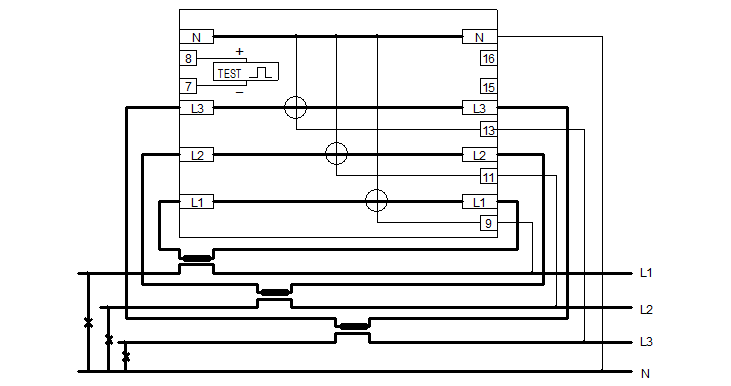

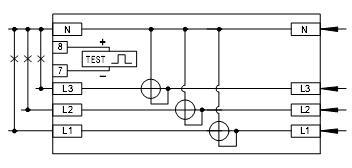

Outer and mount dimension
