Application                         MSM1250SA

     Model MSM1250SA three phase four wire electronic DIN rail active energy meter is a kind of new style three phase four wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net. This meter has seven digits LCD displays shows the active energy consumption. Contact with all kind of AMR system conveniently It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. 2012 3 0473416.7, any other country patent certificate are in assessing.

Functions and features

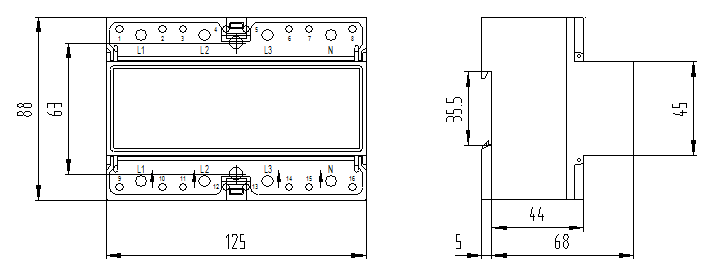

v MSM1250SA series power meters;35mmstandard DIN rail installation , complying with standard DIN EN50022. Or front board installed (mounting holes center distance63 mm), users can choose any one by themselves.

v MSM1250SA series power meters;Ten pole width (Modulus12.5mm), complying with standard JB/T7121-1993.

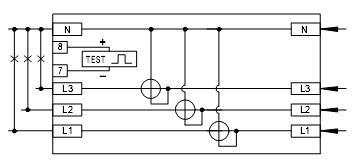

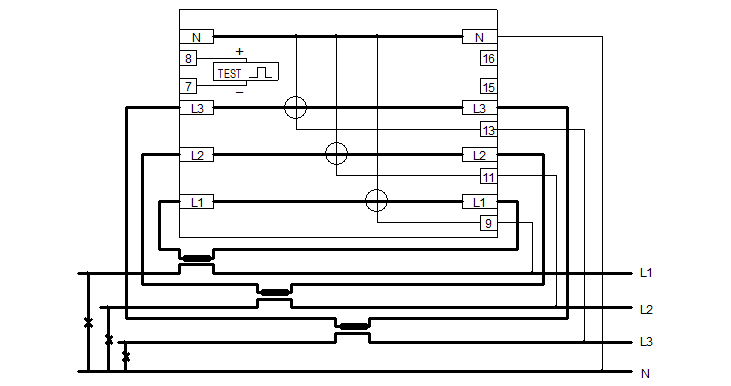

v MSM1250SA series power meters;Type S wiring (Inlet from bottom, outlet from top).

v MSM1250SA series power meters; Seven digits display LCD, 6+1 digits display (999999.1 kWh)

v MSM1250SA series power meters; There are a polarity port of pulse output passive closed and a nonpolarity port of pulse output passive distant (the output rate is 10 kWh/pulse), ). Complying with standard IEC 62053-31 and DIN 43864.

v MSM1250SA series power meters; Six LED instructions respectively every power supply state, signal of closed energy impulse and distant energy impulse and data communication state.

v MSM1250SA series power meters; Automatic detection the direction of the flow of load current. And Instructions on individual LCD

v MSM1250SA series power meters; Single direction three components measure three phase four wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.

v MSM1250SA series power meters; Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety.

* If you need different reference voltage or current specification, please advisory our sales personnel.
