Application                         MSM1250SC

      Model MSM1250SC three phase four wire electronic DIN rail active energy meter is a kind of new style three phase four wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net. This meter has seven digits LCD displays shows the active energy consumption. And there are far infrared and RS485 communication module in it. Contact with all kind of AMR system conveniently It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. 2012 3 0473416.7, any other country patent certificate are in assessing.

Functions and features

v MSM1250SC series electricity meter ;  35mmstandard DIN rail installation , complying with standard DIN EN50022. Or front board installed (mounting holes center distance63 mm), users can choose any one by themselves.

v MSM1250SC series electricity meter ;  Ten pole width (Modulus12.5mm), complying with standard JB/T7121-1993.

v MSM1250SC series electricity meter ;  Type S wiring (Inlet from bottom, outlet from top).

v MSM1250SC series electricity meter ;  Seven digits display LCD, 6+1 digits display (999999.1 kWh)

v MSM1250SC series electricity meter ;  There are a polarity port of pulse output passive closed and a nonpolarity port of pulse output passive distant (the output rate is 10 kWh/pulse), ). Complying with standard IEC 62053-31 and DIN 43864.

v MSM1250SC series electricity meter ;  Standard configuration there are a port of far infrared data communication and aportofRS485data communication. Communication agreement complying with standard DL/T645-1997and MODBUS-DRT, can also choose without function of data communication.

v MSM1250SC series electricity meter ;  Six LED instructions respectively every power supply state, signal of closed energy impulse and distant energy impulse and data communication state.

v MSM1250SC series electricity meter ;  Automatic detection the direction of the flow of load current. And Instructions on individual LCD

v MSM1250SC series electricity meter ;  Single direction three components measure three phase four wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.

v MSM1250SC series electricity meter ;  Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety.

* If you need different reference voltage or current specification, please advisory our sales personnel.

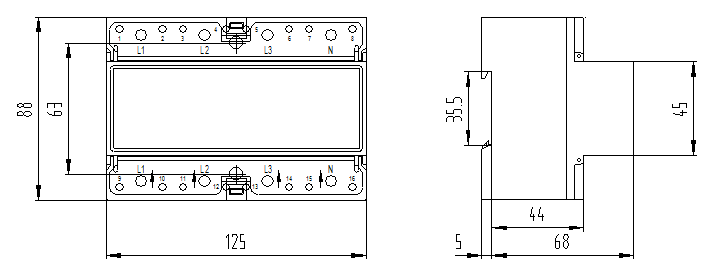

Outer and mount dimension

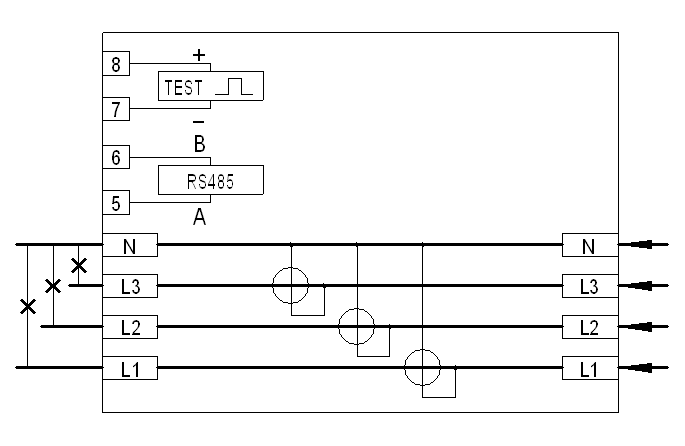

Wiring diagram (Type S)

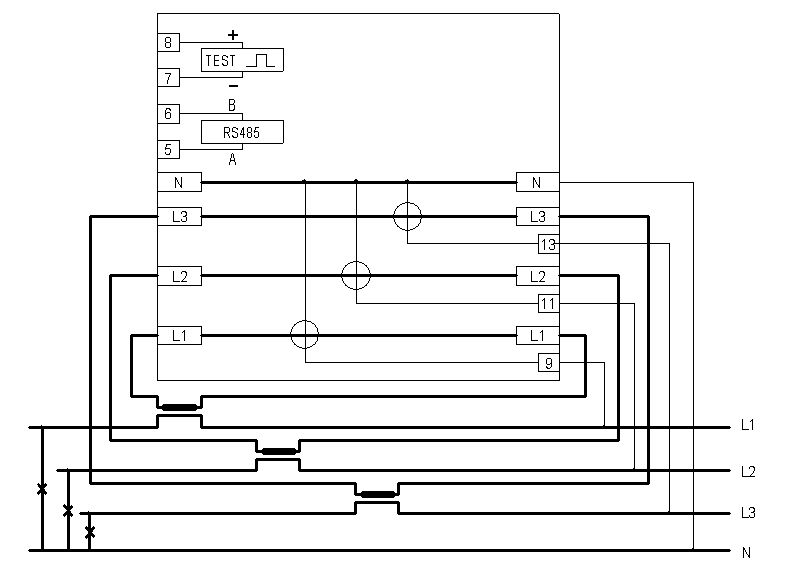

Wiring diagram (Type S)
