Application                   MSM18SA
     MSM18SA is DIN rail single phase two wire active electronic energy meter. It adopts many advanced technologies of research and development, like microelectronic-techniques, specialized large-scale IC (integrated circuit), digital sampling and processing technology, SMT technique, and so on. The technical performances completely conform to International Standards IEC 62053-21 for Class 1 single phase active energy meter. It can directly and accurately measure the load active energy consumption in the single phase AC networks of rated frequency 50Hz or 60Hz. MSM18SA  has features with excellent long-term reliability, small volume, light weight, perfect appearance, easy installation, etc.This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO.ZL  2012 3 0473770.X, any other country patent certificate are in assessing.

Functions and features

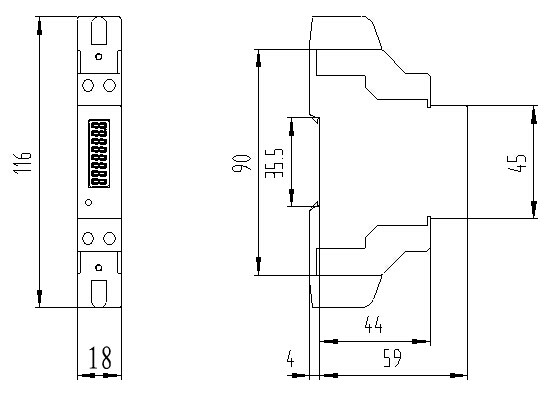

v MSM18SA series energy meters : Available as 35mm DIN standard rail mounted, conforming to Standards DIN EN 50022.
v MSM18SA series energy meters : Single pole width (modulus 18mm), complying with Standards DIN43880.
v MSM18SA series energy meters : Standard configuration 7+1 digits display (9999999.1kWh) without backlight LCD. May select 7+1 digits display (999999.1kWh) by white backlight LCD.
v MSM18SA series energy meters : Standard configuration pulse output passive (polarity),May select distant pulse output passive (nonpolarity). And contact with all kind of AMR system conveniently,complying with standard IEC 62053-31 and DIN 43864.
v MSM18SA series energy meters : Bicolor LED instructions power supply state (green) and signal of energy impulse (red).
v MSM18SA series energy meters : Automatic detection the direction of the flow of load current. And Instructions on LED (when display HELP 1 on LCD, that means the reverse of the flow of load current).
v MSM18SA series energy meters : Single direction measurement single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.

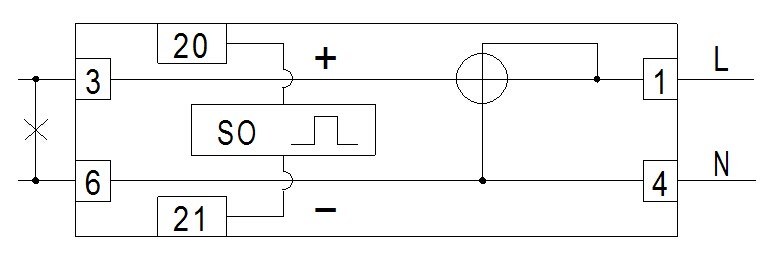

v MSM18SA series energy meters : Directly type S connection.
v MSM18SA series energy meters : Extension terminals cover, in order to protect to use safety.
