Application                       MSM1250S-U

     Model MSM1250S-U 3 phase 4 wire electronic DIN rail active energy meter is a kind of new style 3  phase 4 wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from 3 phase 4 wire AC electricity net. It can display total energy consumption by step motor impulse register. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. ZL 2013 3 0556168.7, any other country patent certificate are in assessing.

Functions and features:

v MSM1250S-U series electricity meter ; 35mm standard DIN rail installation, complying with standard DIN EN50022.

v MSM1250S-U series electricity meter ; Ten pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.

v MSM1250SF series electricity meter ; Standard configuration 5+1 digits display (99999.9kWh) by step motor impulse register.

v MSM1250S-U series electricity meter ; Five LED instructions respectively power supply state (phase voltage A,B,C),Impulse and REV.

v MSM1250S-U series electricity meter ; Automatic detection the direction of the flow of load current. And instructions (signal of closed energy impulse is green when working, that is meaning the direction of the flow of load current reverse).

v MSM1250S-U series electricity meter ; Single direction 3 components measure 3 phase 4 wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.

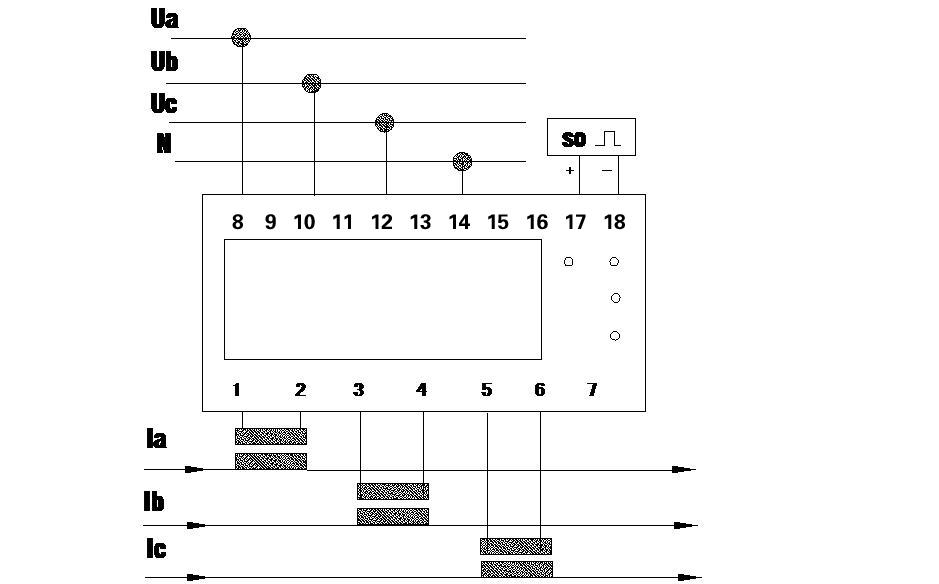

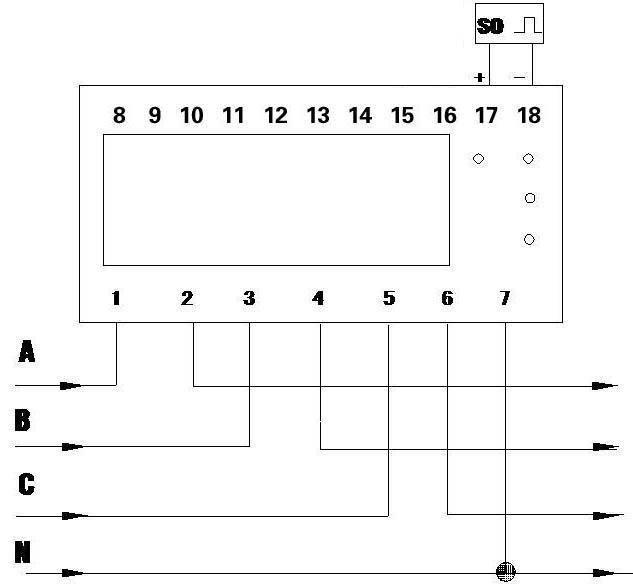

v MSM1250S-U series electricity meter ; Standard configuration type S wiring (Type U)) for direct connect operation, we can also choose another type of wiring, and use 5+1 digits display by impulse register, (Type U   CT ).

v MSM1250S-U series electricity meter ; Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety.

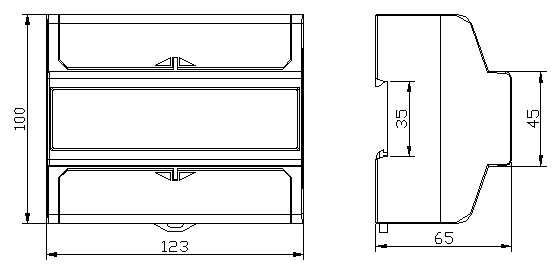

Outer and mount dimension
