Application                         MSM1250SAR-U

     Model MSM1250SAR-U three phase four wire electronic DIN rail active energy meter is a kind of new style three phase four wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. The meter completely accord with relevant technical requirements of class 1 three phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from three phase four wire AC electricity net. This meter has seven digits LCD displays shows the active energy consumption. Contact with all kind of AMR system conveniently It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. ZL 2013 3 0556168.7, any other country patent certificate are in assessing.

Functions and features

v MSM1250SAR-U series electricity meter ;  35mm standard DIN rail installation , complying with standard DIN EN50022.

v MSM1250SAR-U series electricity meter ; Ten pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.

v MSM1250SAR-U series electricity meter ; Seven digits display LCD, 6+1 digits display (999999.1 kWh) .

v MSM1250SAR-U series electricity meter ; There are a polarity port of pulse output passive closed and a nonpolarity port of pulse output passive distant . Complying with standard IEC 62053-31 and DIN 43864.

v MSM1250SAR-U series electricity meter ; Five LED instructions respectively every power supply state, signal of closed energy impulse and distant energy impulse and data communication state.

v MSM1250SAR-U series electricity meter ; Standard configuration there are a port of far infrared data communication and aportofRS485data communication. Communication agreement complying with standard DL/T645-1997and MODBUS-DRT, can also choose without function of data communication.

v MSM1250SAR-U series electricity meter ; Automatic detection the direction of the flow of load current. And Instructions on individual LCD.

vMSM1250SAR - U series watt-hour meter: can measure  current, voltage,Active , reactive, power, frequency and other data.

v MSM1250SAR-U series electricity meter ; Single direction three components measure three phase four wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.

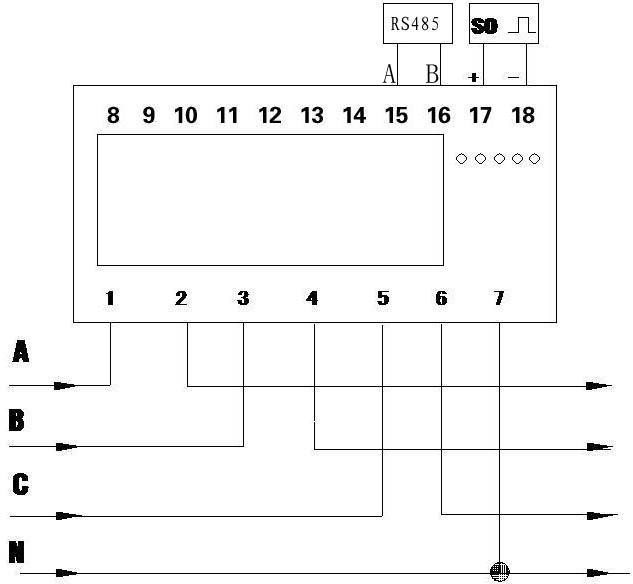

v MSM1250SAR-U series electricity meter ; Type S wiring (Type U).

v MSM1250SAR-U series electricity meter ; Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety.

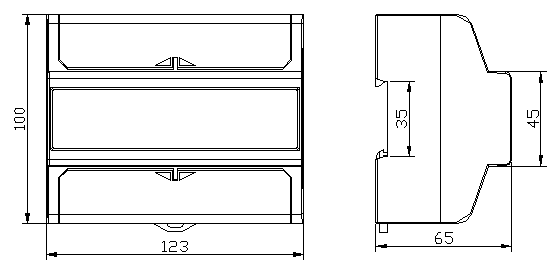

Outer and mount dimension
