Application                          MSM35S

       Model MSM35S single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc. It has its completely independent intellectual property rights and minimum size.  The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net. This meter has white backlight source eight digits LCD displays shows the active energy consumption. It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. ZL 2012 3 0473501.3, any other country patent certificate are in assessing.

Functions and features

v MSM35S series energy meters : 35mm standard DIN- rail installation , complying with standard DIN EN50022.

v MSM35S series energy meters : Bipolar width (Modulus 17.5mm), complying with standard DIN43880.

v MSM35S series energy meters : Standard configuration 7+1 digits display (9999999.1kWh) by white backlight source LCD. May select 7+1 digits display (999999.1kWh) without backlight source general LCD.

v MSM35S series energy meters : Standard configuration pulse output passive (polarity),May select distant pulse output passive ( nonpolarity). And contact with all kind of AMR system conveniently,Complying with standard IEC 62053-31 and DIN 43864.

v MSM35S series energy meters : Two LED instructions power supply state (green) and signal of energy impulse (red).

v MSM35S series energy meters : Automatic detection the direction of the flow of load current. And instructions on LCD (when display HELP 1 on LCD, that is meaning the direction of the flow of load current reverse).

v MSM35S series energy meters : Single direction measurement single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.

v MSM35S series energy meters : Directly type S connection.

v MSM35S series energy meters : Extension terminals cover, in order to protect to use safety

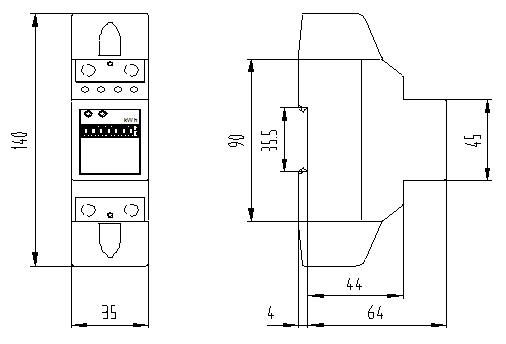

Outer and mount dimension

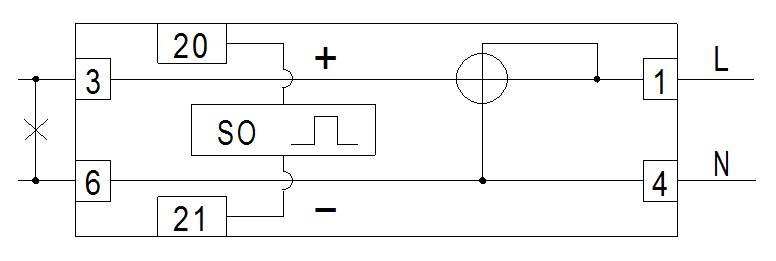

Wiring diagram (Type S)
