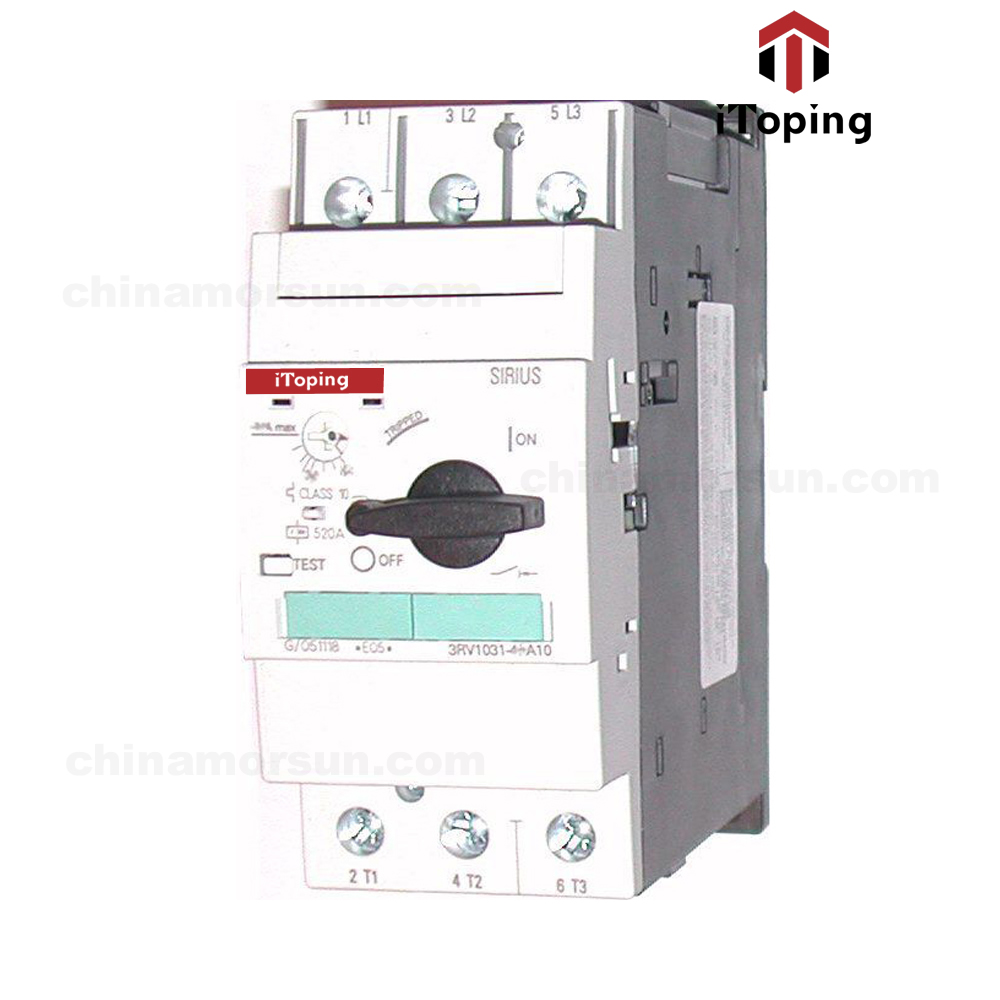

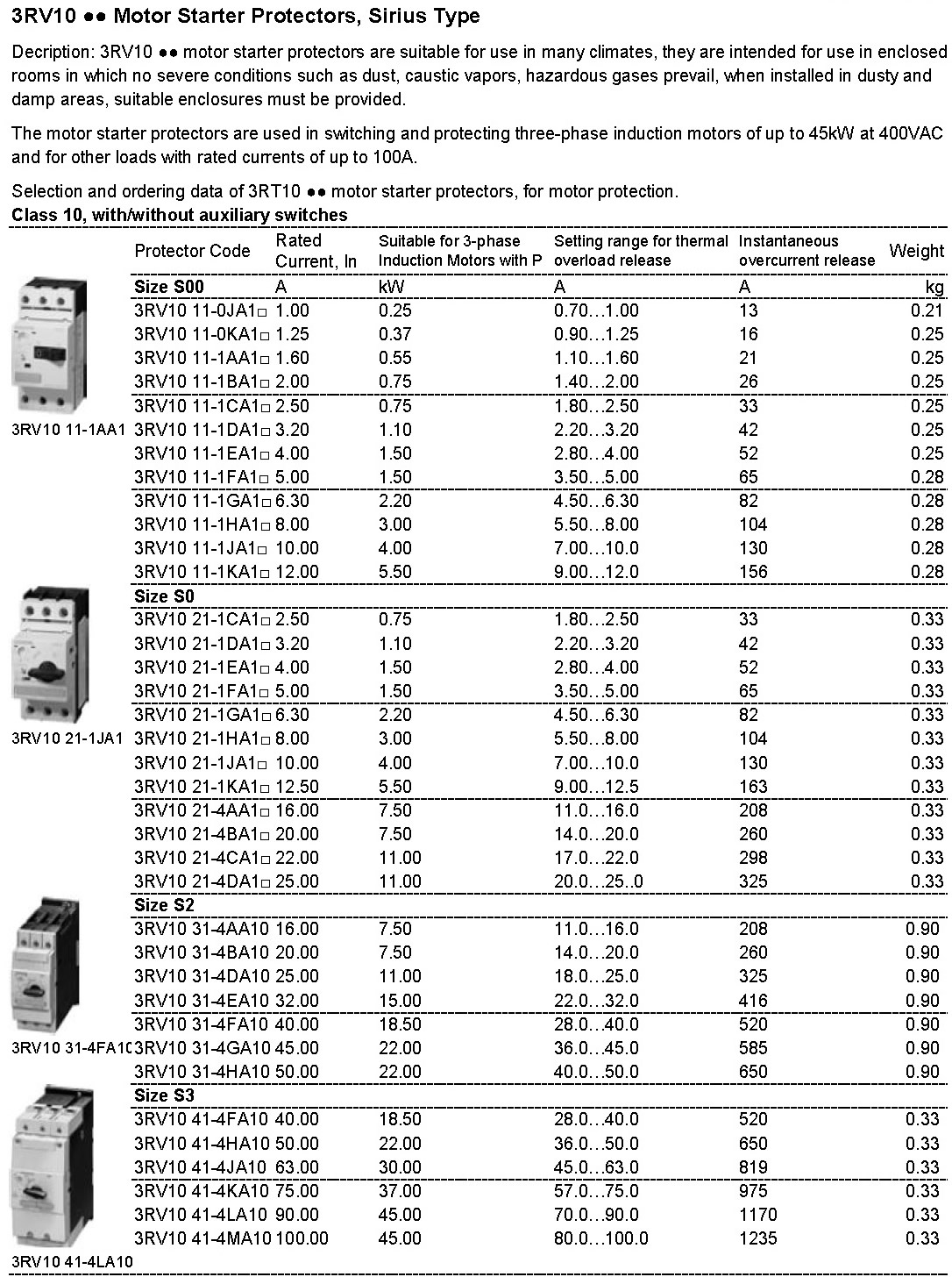

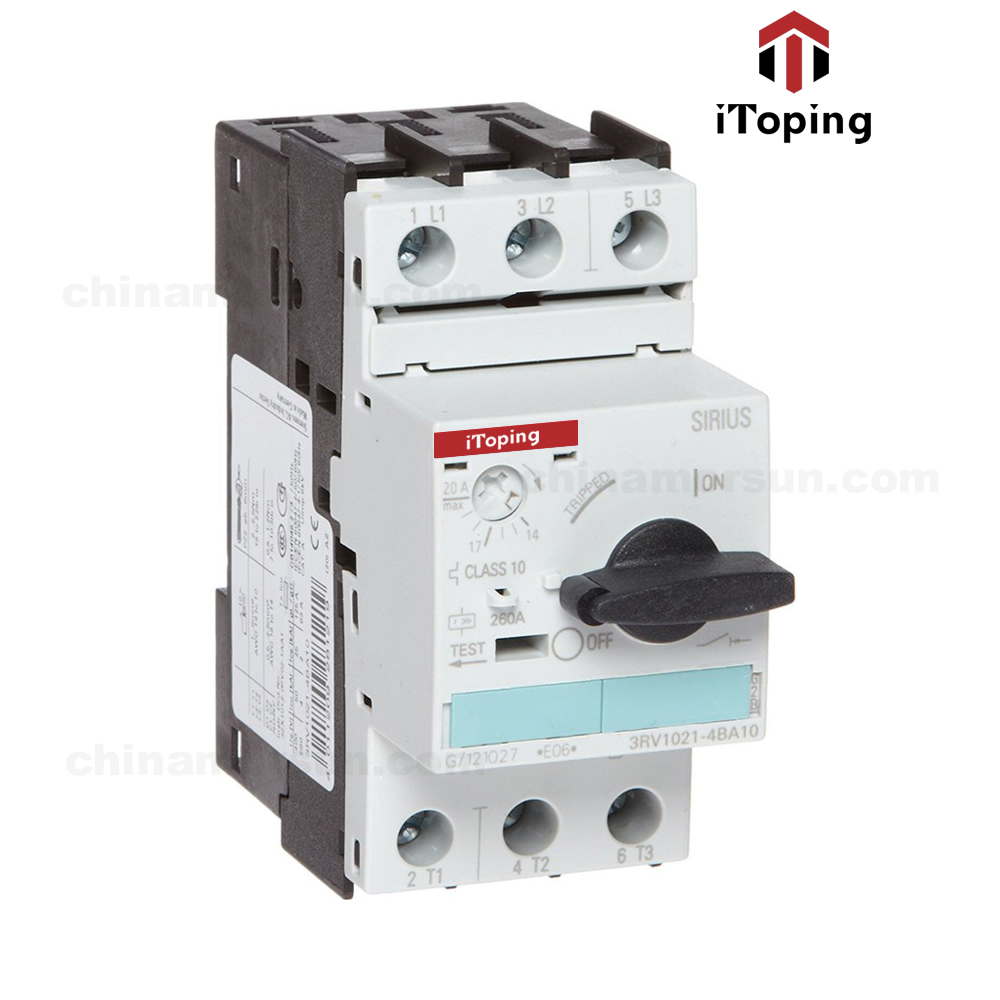

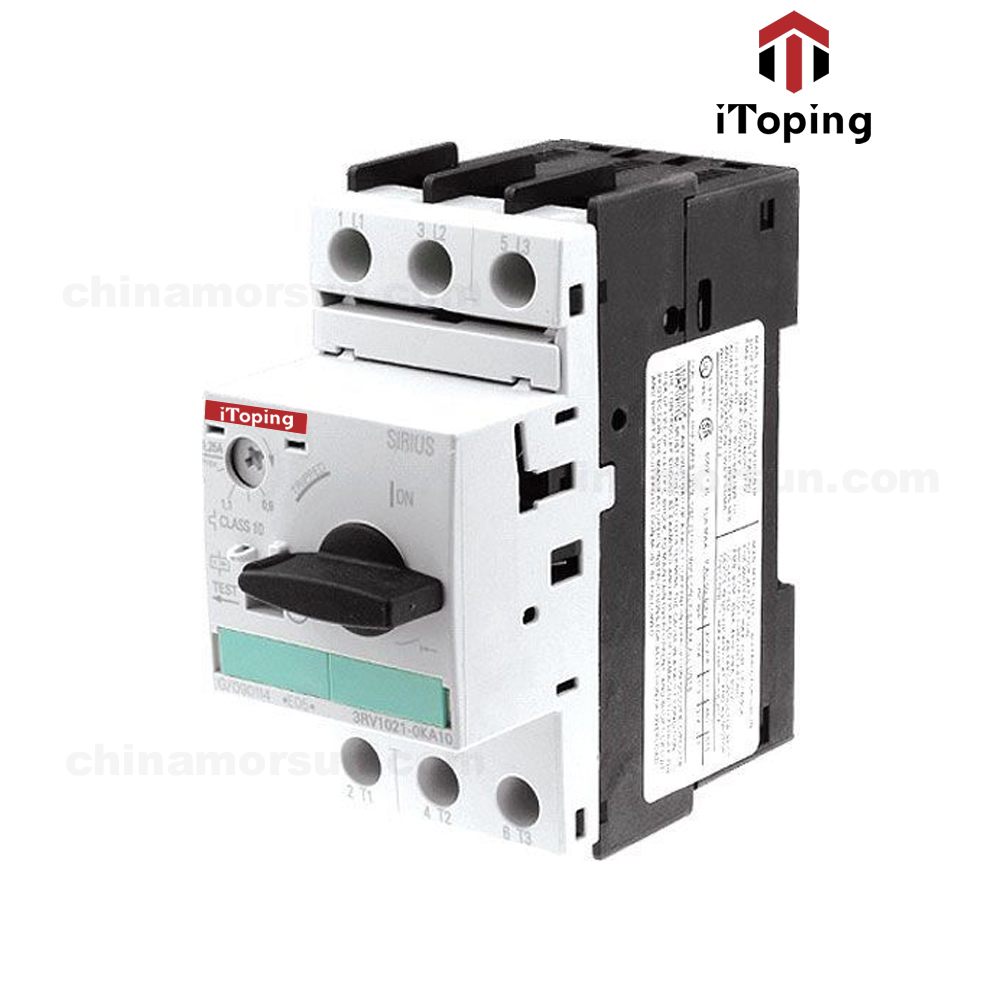

Product name:3RV10 Motor Starter Protectors, Sirius Type

3RV10 ?? motor starter protectors are used for switching and protecting three-phase induction motors of up to 45kW at 400VAC and for other loads with rated currents of up to 100A, they are available in 4 sizes:
¦ Size S00-overall width 45mm with maximum current 12A;
¦ Size S0-overall width 45mm with maximum current 25A;
¦ Size S2-overall width 55mm with maximum current 50A;
¦ Size S3-overall width 70mm with maximum current 100A;
