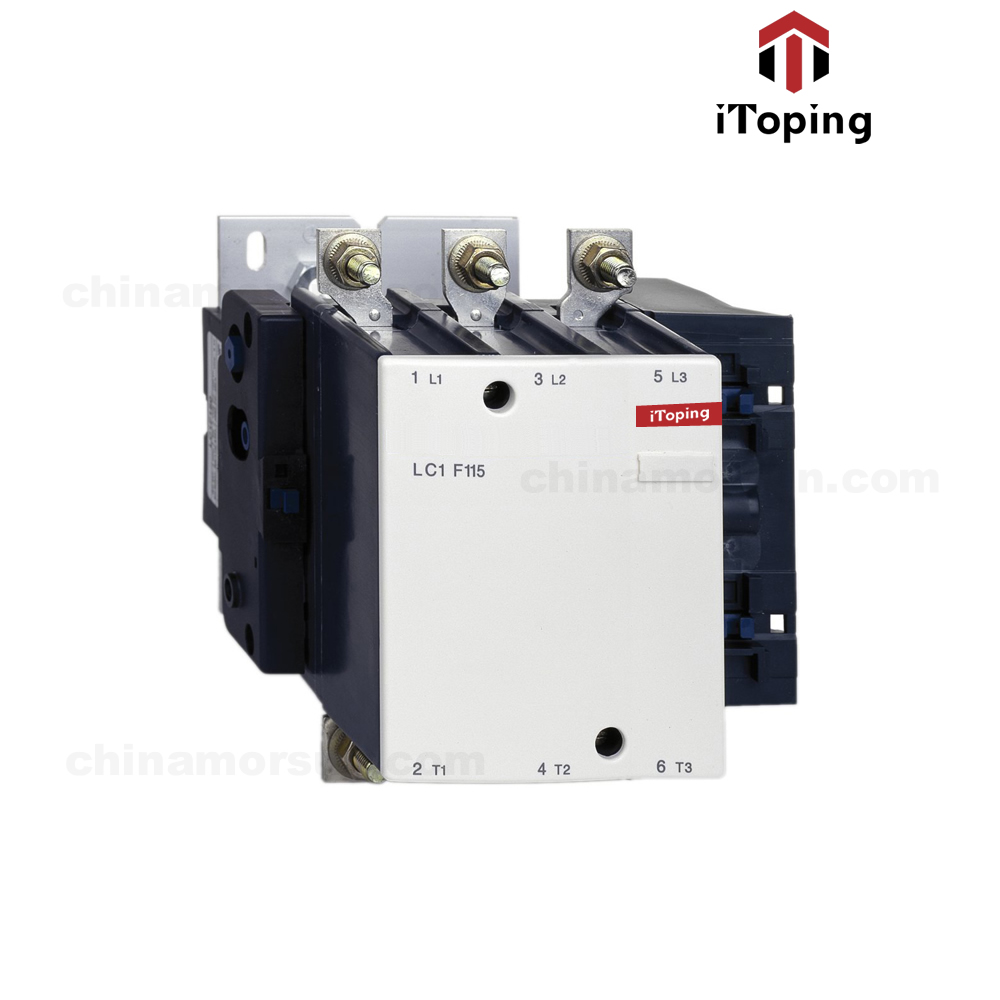

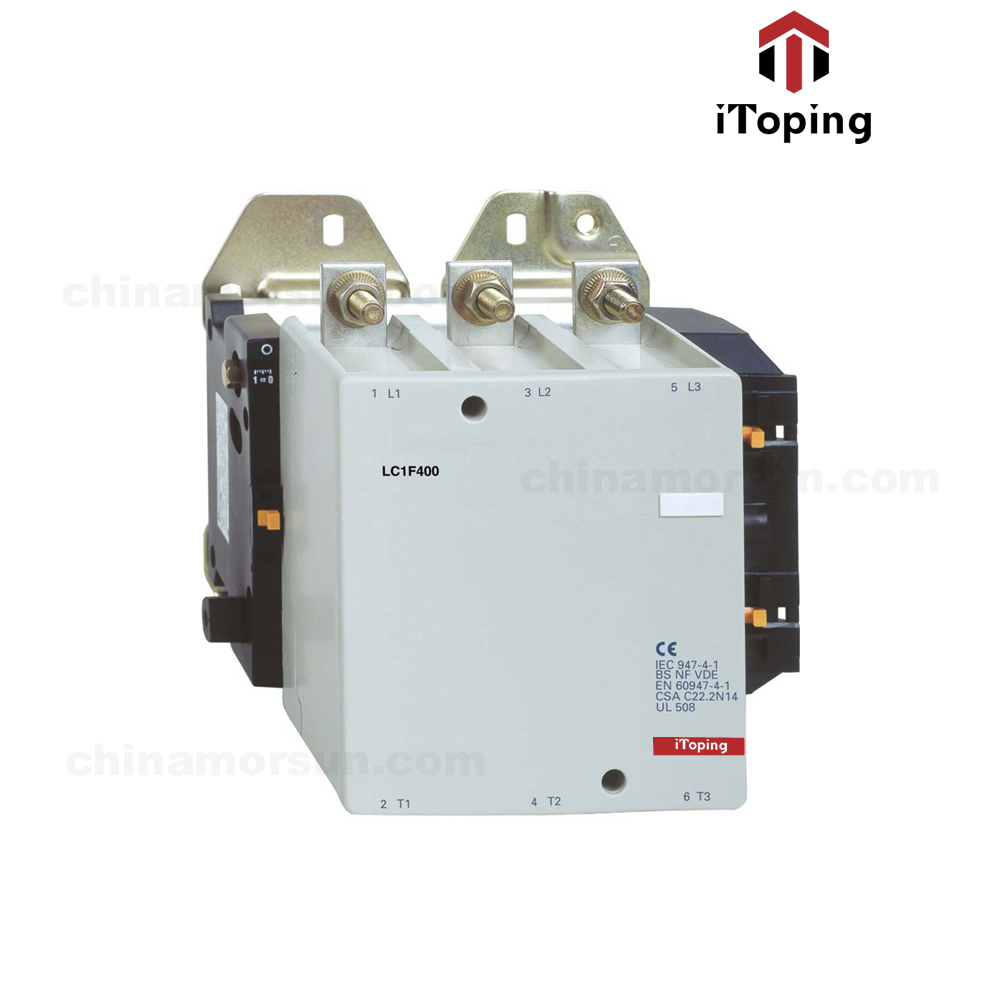

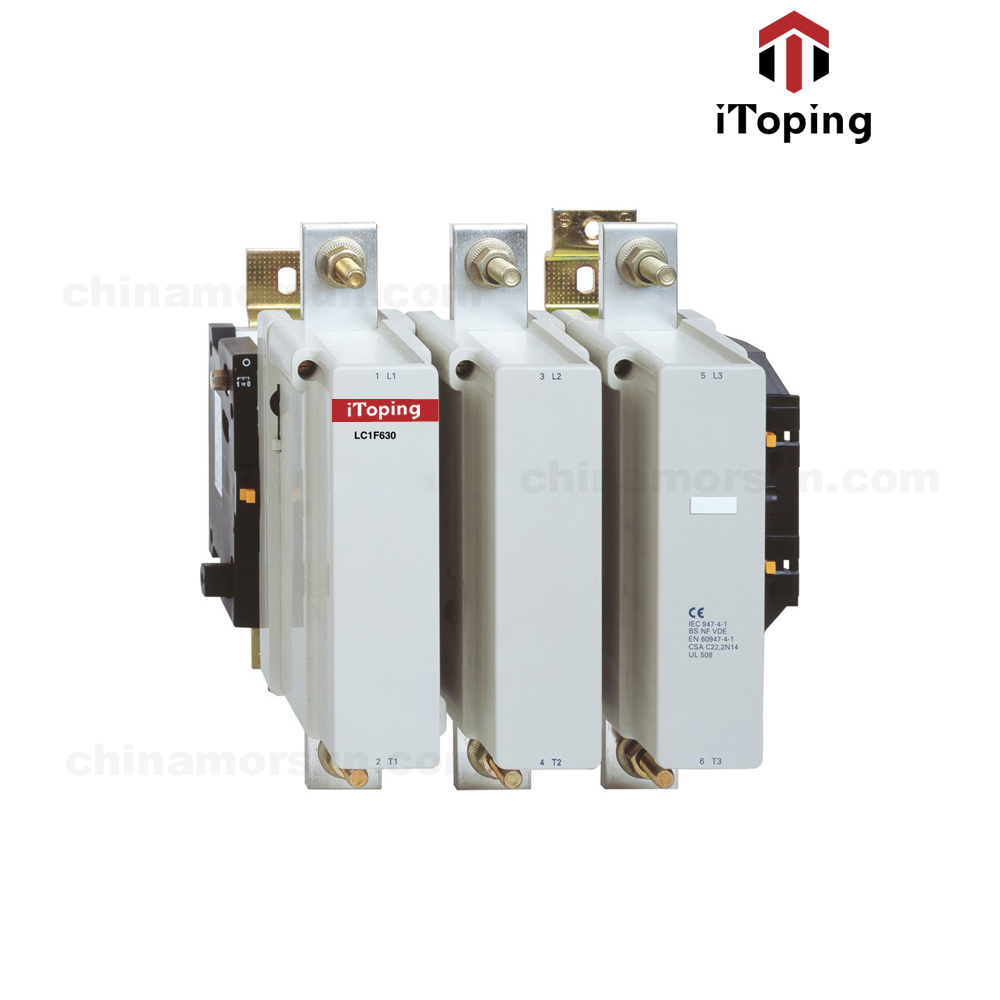

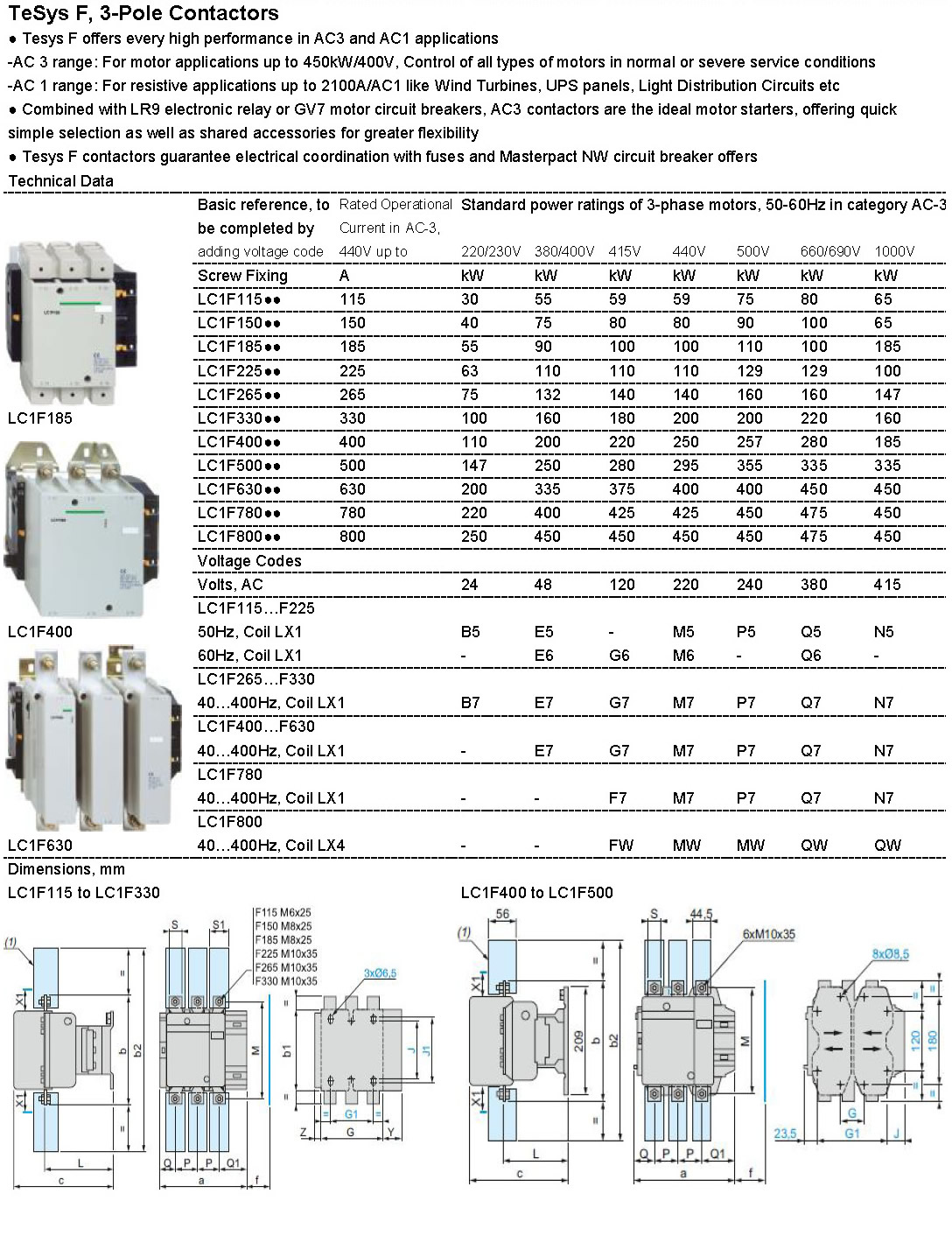

LC1F, 3-pole with Tesys type contactors offer very high performance in AC3 and AC1 applications with the following characteristics:
¦ Combined with LR9 electronic relay or GV7 motor circuit breakers, AC3 contactors are the ideal motor starters, offering quick simple selection as well as shared accessories for greater flexibility;
¦ Tesys F or LC1F contactors guarantee electrical coordination with fuses and Masterpact NW circuit breakers offered;
¦ AC3 range: for motor application ups to 450kW/400V, control of all types of motors in normal or serve service conditions;
¦ AC1 range: for resistive applications up to 2100A/AC1 like Wind Turbines, UPS panels, Light Distribution Circuits etc.
