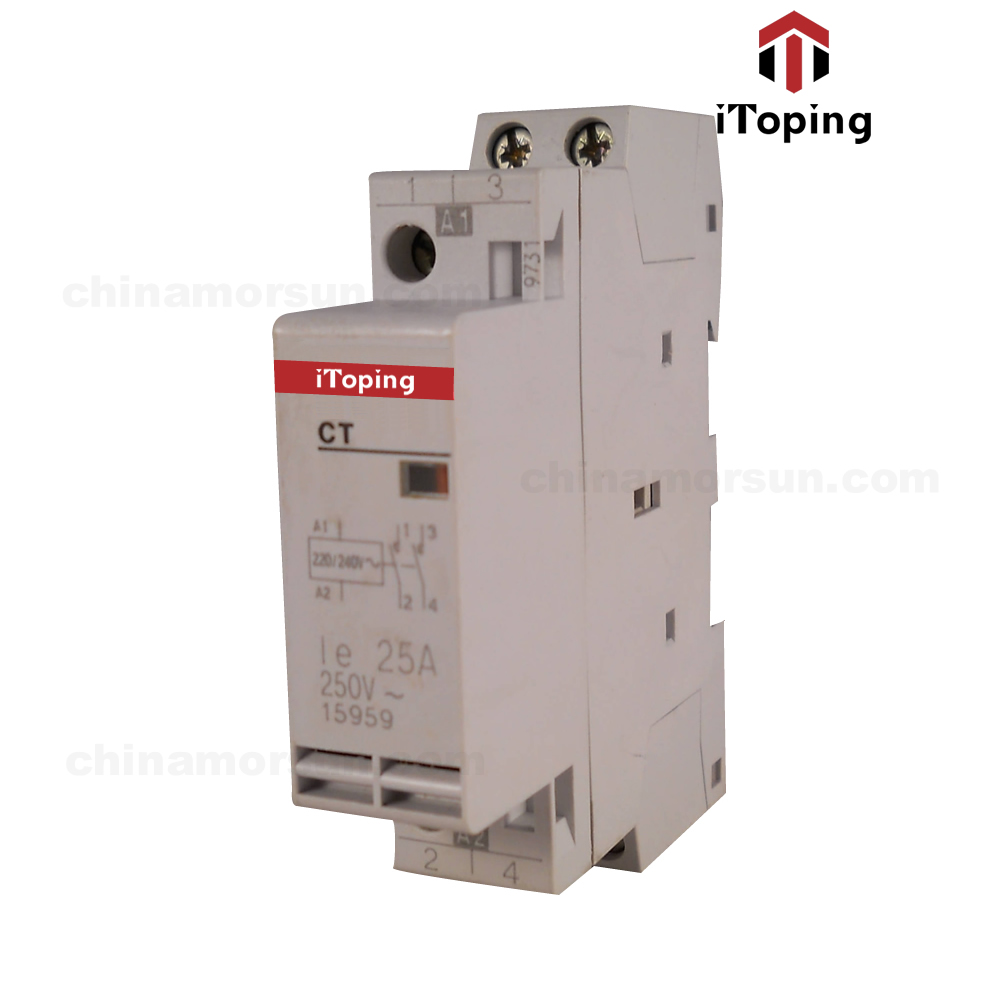

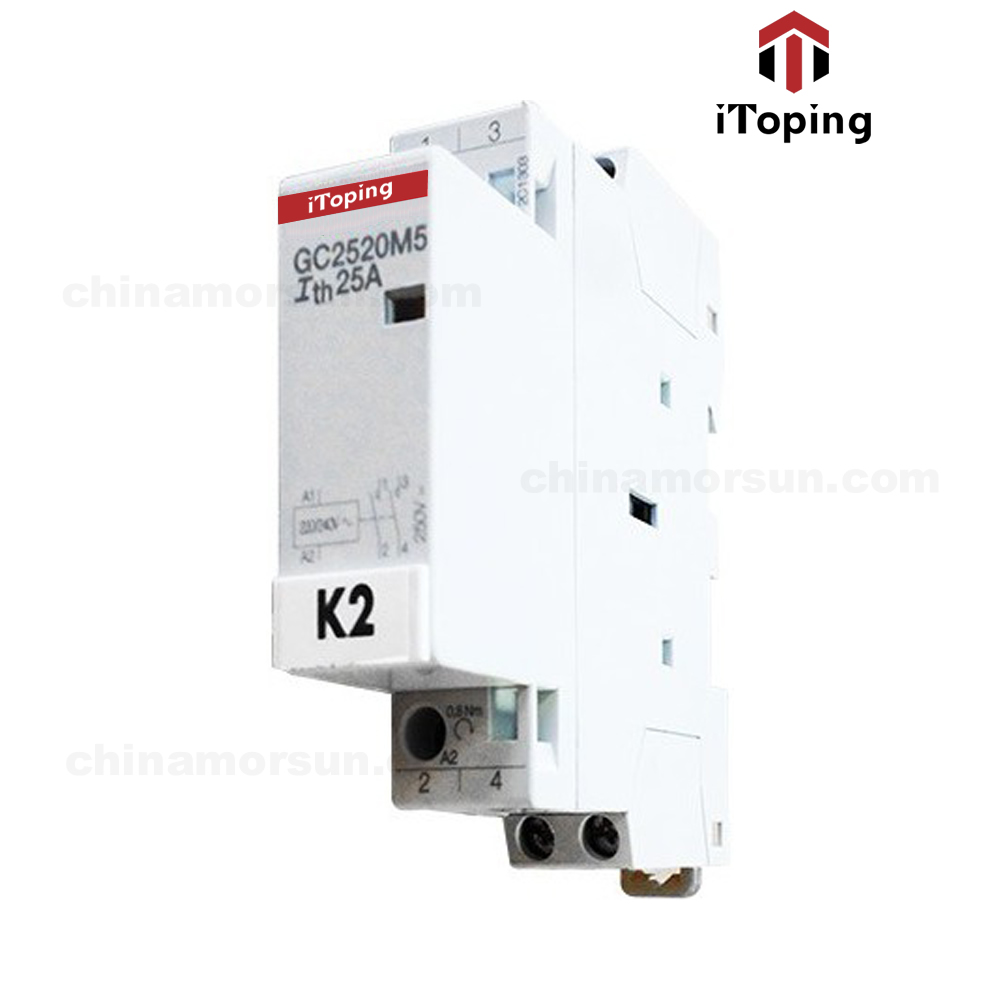

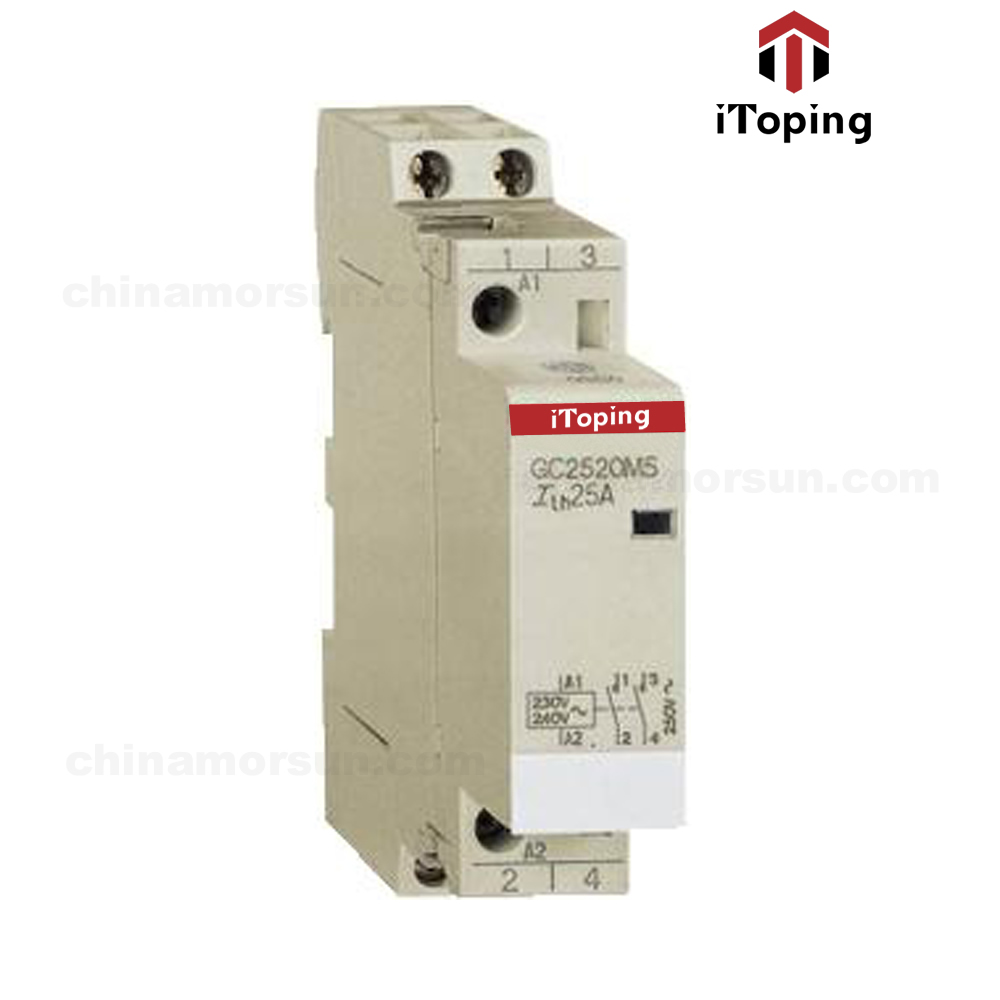

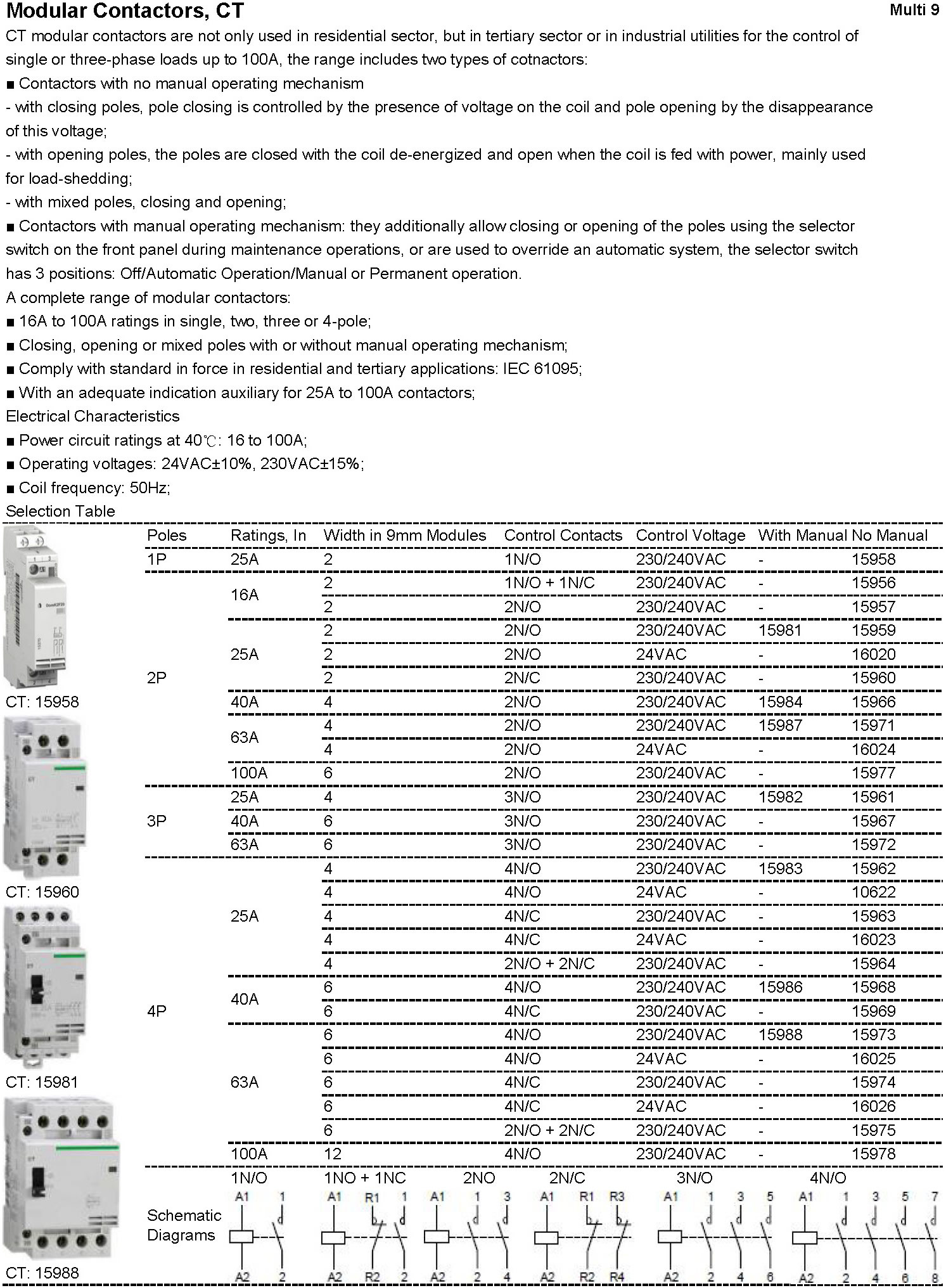

Merlin Gerin modular contactors are not only used in residual sectors, but also in tertiary sectors or in industrial utilities for the control of single or three-phase loads up to 100A, the ranges include two types of contactors: ¦ Contactors with no manual operating mechanism;
¦ Contactors with manual operating mechanism: they additionally allow closing or opening of the poles using the selector switch on the front panel during maintenance operations, or are used to override an automatic system, the selector switch has 3 positions, Off/Automatic Operation, Manual or Permanent operation;
Electrical Characteristics
¦ Power circuit ratings at 40?: 16A to 100A;
¦ Operating voltages: 24VAC±10%, 230VAC±15%;
¦ Coil frequency: 50Hz
