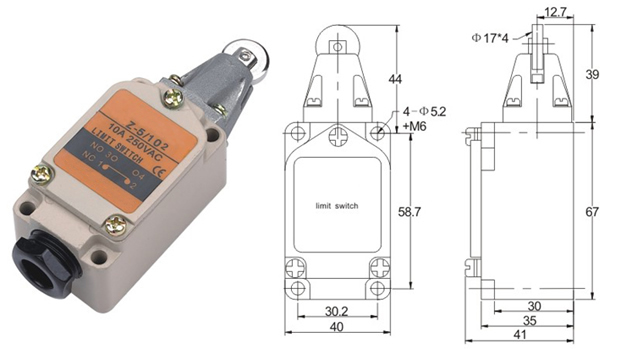

Product name:Roller arm type(Z-5-102)

Roller arm type(Z-5-102)
Z-5-102
Features
Strong aluminum cast outer shell,strong structure and high mechanical strength
Preventing oil,water and pressure
Double way switch,double spring inner switch
Many kinds levers to move,easily use
Specification
Item
Data
Rating load
10A/250VAC
Operation speed
0.1mm-2m/s
Operation frequency
Mechanical
240time/min
Electrical
20time/min
Insulation resistance
100MO(above)(DC500V)
Contact resistance
25MOInitial value
Withstand voltage
Non-connection wire
1000VAC
Every terminal
1500VAC
Vibration
Misoperation
10-55Hz (Amplitude)1.5mm
Impact
Durable
1000m/s
Misoperation
300m/s
Life
Electical
100,00(above)
Mechanical
1,000,000(baove)
Protection degree
IP67
Ambient operating temperature
-25-80?
Humidity
<85%

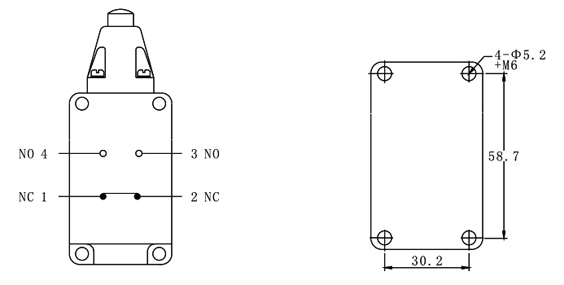

Contact form and mounting holes
