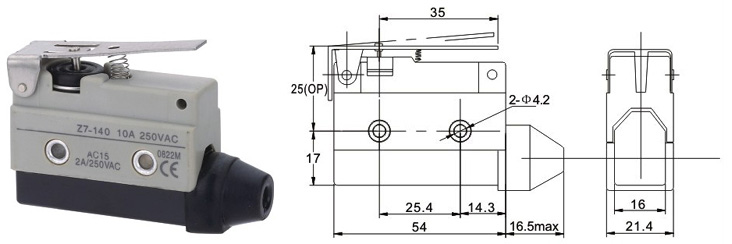

Product name:Short Lever type(Z7-140)

Short Lever type(Z7-140)
Z7-140
Featrues
Adopt outer shell with intensive plastic and sealed construction,better mechanical strength and water-proof and oil-proof
Side fixed form and swift contact
Variety of levers
Specification
Item
Data
Rating load
10A/250VAC
Operation speed
0.1mm-50cm/s
Operation frequency
Mechanical
240time/min
Electrical
20time/min
Insulation resistance
100MO(above)(DC500V)
Contact resistance
25MOInitial value
Withstand voltage
Non-connection wire
1000VAC
Every terminal
1500VAC
Vibration
Misoperation
10-55Hz (Amplitude)1.5mm
Impact
Durable
1000m/s
Misoperation
300m/s
Life
Electical
100,00(above)
Mechanical
1,000,000(baove)
Protection degree
IP65
Ambient operating temperature
-25-80?
Humidity
<85%
?????????
