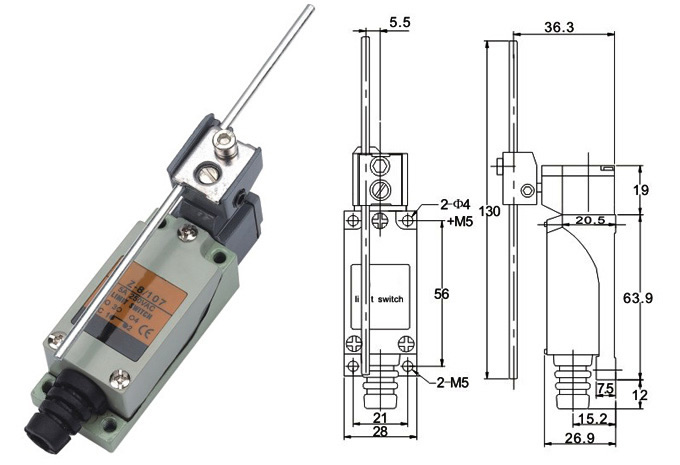

Adjustable rodl lever type(Z-8/107)

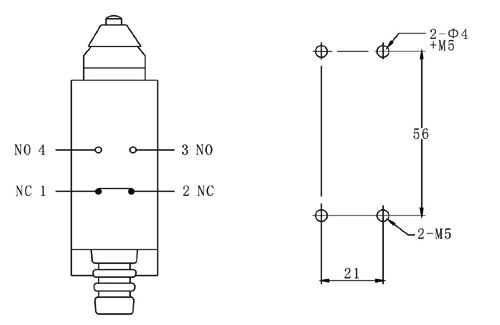

Z-8/107 Features Strong structure,made of zinc metal alloy and plastics,easy to contact line Small size,water and oil resistant Double way switch ,double spring inner switch Many kinds levers to move,easily use Specification Item Data Rating load 5A/250VAC Operation speed 0.5mm-50cm/s Operation frequency Mechanical 240time/min Electrical 20time/min Insulation resistance 100MO(above)(DC500V) Contact resistance 25MO Initial value Withstand voltage Non-connection wire 1000VAC Every terminal 1500VAC Vibration Misoperation 10-55Hz (Amplitude)1.5mm Impact Durable 1000m/s Misoperation 300m/s Life Electical 100,00(above) Mechanical 1,000,000(baove) Protection degree IP66 Ambient operating temperature -25-80? Humidity <85% Contact form and mounting holes
