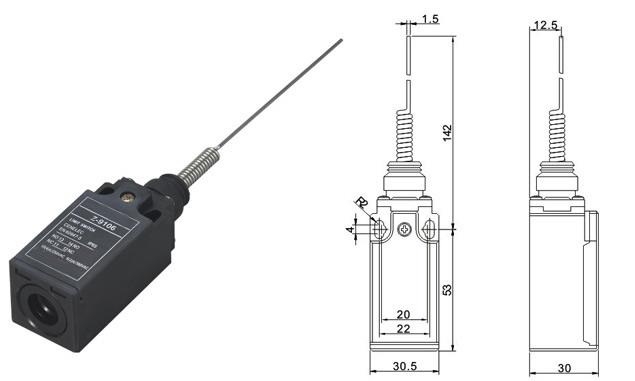

Cat whisker type(Z-9106)

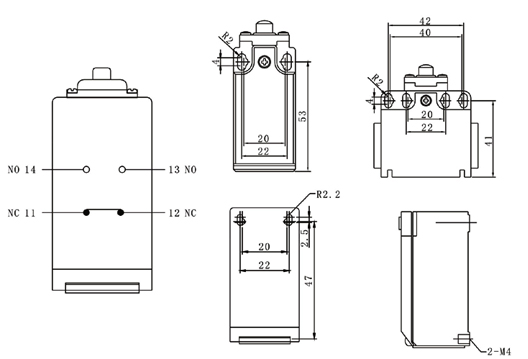

Z-9106 Features Ecnomical eplastic type Double way switch,double spring inner switch Many kinds levers to move ,easily use Specification Item Data Rating load 10(4)A/250VAC,6(2)A/380VAC Operation speed 5mm-0.5m/s Operation frequency Mechanical 240time/min Electrical 20time/min Insulation resistance 100MO(above)(DC500V) Contact resistance 25MO Initial value Withstand voltage Non-connection wire 1000VAC Every terminal 1500VAC Vibration Misoperation 10-55Hz (Amplitude)1.5mm Impact Durable 1000m/s Misoperation 300m/s Life Electical 500,00(above) Mechanical 1,200,000(baove) Protection degree IP65 Ambient operating temperature -25-80? Humidity <85% Contact form and mounting holes
