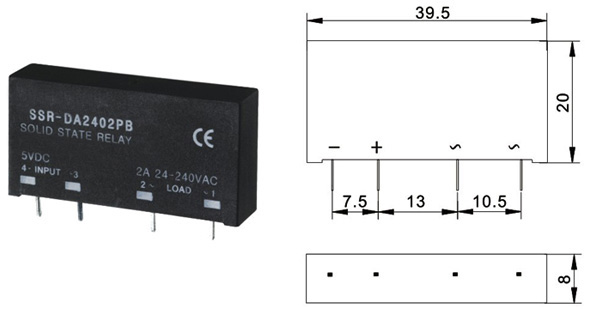

Single-phase AC Solid state relay(uniline type)(SSR-DA2402PB 240V/2A)

SSR-DA2402PB 240V/2A control voltage 5VDC control current 6-25mA guarantee close voltage 1VDC guarantee open voltage 3VDC load voltage 24-240VDC load max current 2A load minni current 0.05A breakover voltage =1VAC output leakage current =1mA medium withstand voltage =2500VAC insulating resistance =100MO switching time =10mS frequency range 50-60hZ operating temperature -20-70? load current safety factor (resistive load)50-60% (inductive load)30-40%
