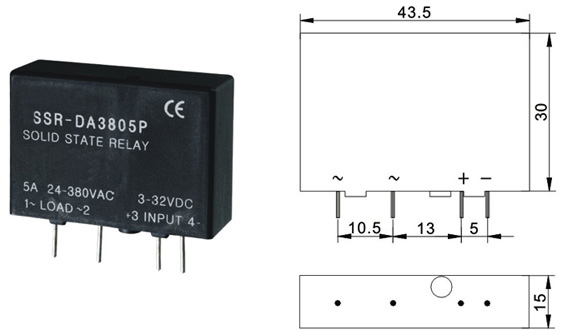

Product name:SSR-DA38? 380V/3-5A

Single-phase AC Solid state relay(uniline type)(SSR-DA38? 380V/3-5A)
SSR-DA38? 380V/3-5A
control voltage
3-32VDC
control current
4-20mA
guarantee close voltage
32VDC
guarantee open voltage
1VDC
load voltage
24-3800VDC
load max current
3-5A
load minni current
0.05A
breakover voltage
=1.6VAC
output leakage current
=5mA
medium withstand voltage
=2500VAC
insulating resistance
=100MO
switching time
=10mS
frequency range
50-60hZ
operating temperature
-20-70?
load current safety factor
(resistive load)50-60%
(inductive load)30-40%
