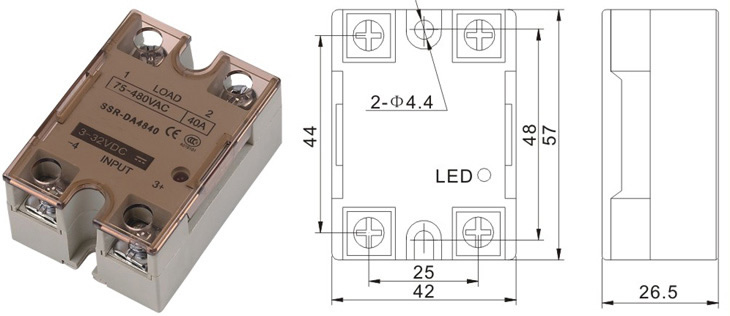

Single-phase AC Solid state relay(Horizontal)(SSR-DA?? SSR-AA??)

SSR-DA?? SSR-AA?? control voltage 3-32VDC 80-250VAC control current 4-20mA 3-20mA reverse voltage 32VDC / guarantee close voltage 1VDC 30VAC guarantee open voltage 3VDC 80VAC load voltage 24-240VAC 75-480VAC load max current 5-90A load minni current 0.05A breakover voltage =1.6VAC output leakage current =5mA medium withstand voltage =2000VAC insulating resistance =100MO switching time =10mS frequency range 50-60hZ operating temperature -20-70? load current safety factor (resistive load)50-60% (inductive load)30-40%
