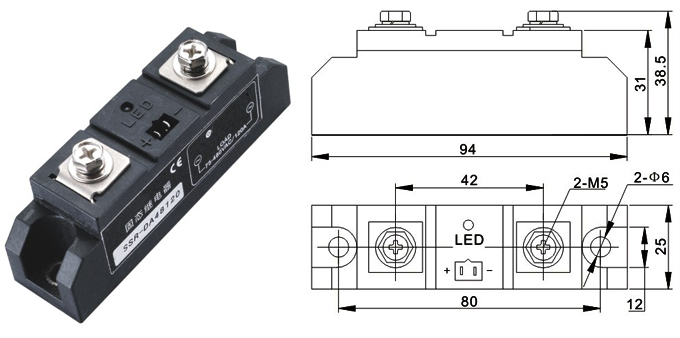

Single-phase AC Solid state relay(Horizontal)(SSR-DA380? 380V/2-3A)

SSR-DA380? 380V/2-3A control voltage 3-32VDC control current 6-25mA reverse voltage 32VDC guarantee close voltage 1VDC guarantee open voltage 3VDC 80VAC load voltage 75-480VAC load max current 5-90A load minni current 0.05A breakover voltage =1.6VAC output leakage current =5mA medium withstand voltage =2500VAC insulating resistance =100MO switching time =10mS frequency range 50-60hZ operating temperature -20-70? load current safety factor (resistive load)50-60% (inductive load)30-40%
