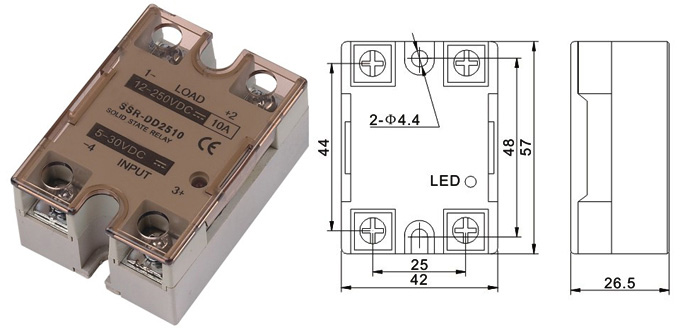

DC Solid state relay(Horizontal)(SSR-DD??)

SSR-DD?? control voltage 3-12VDC 5-30VDC control current 2-20mA 4-25mA guarantee close voltage 1VDC 2VDC guarantee open voltage 3VDC 5VDC load voltage 12-250VAC 12-400VAC load max current 5A 10A 20A 25A 30A 40A load minni current 0.05A breakover voltage =1.5VDC output leakage current =1mA medium withstand voltage =2500VAC insulating resistance =100MO switching time =5mS operating temperature -20-70? load current safety factor (resistive load)50-60% (inductive load)30-40%
