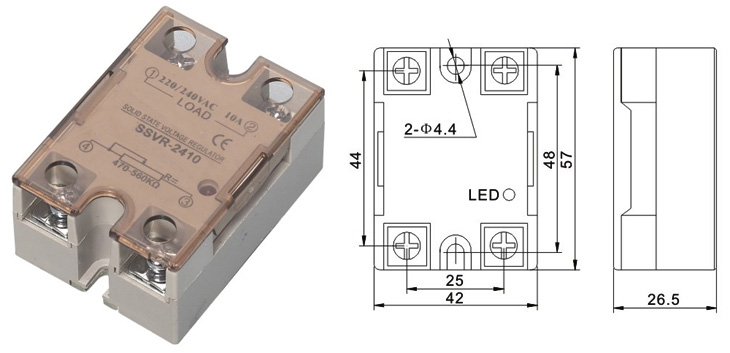

Single-phase AC Solid state relay(Adjusting Resistance)(SSVR-??)

SSVR-?? load voltage regulation scope 0-240VAC 0-480VAC load max current 10A 20A 25A 30A 40A external potentionmeter 470-560KO/2W angle of flow scope 0-170° output leakage current =1mA medium withstand voltage =2500VAC insulating resistance =100MO switching time =1mS frequency range 50-60Hz load current safety factor (resistive load)50-60% (inductive load)30-40%
