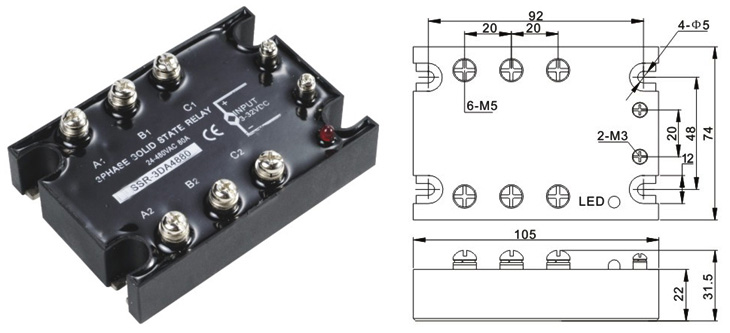

Three-phase AC Solid Relay(SSR-3DA48?/SSR-3AA48?)

SSR-3DA48? SSR-3AA48? control voltage 3-32VDC 80-250VAC control current 4-20mA 3-20mA reverse voltage 32VDC / guarantee close voltage 1VDC 30VAC guarantee open voltage 3VDC 80VAC load voltage 24-480VAC load max current 60-200A load minni current 0.05A breakover voltage =1.6VAC output leakage current =8mA medium withstand voltage =2500VAC insulating resistance =100MO switching time =10mS frequency range 50-60hZ operating temperature -20-70? load current safety factor (resistive load)50-60% (inductive load)30-40%
