Microcontroller based
Cycler beginning with pulse/cycler beginning with pause

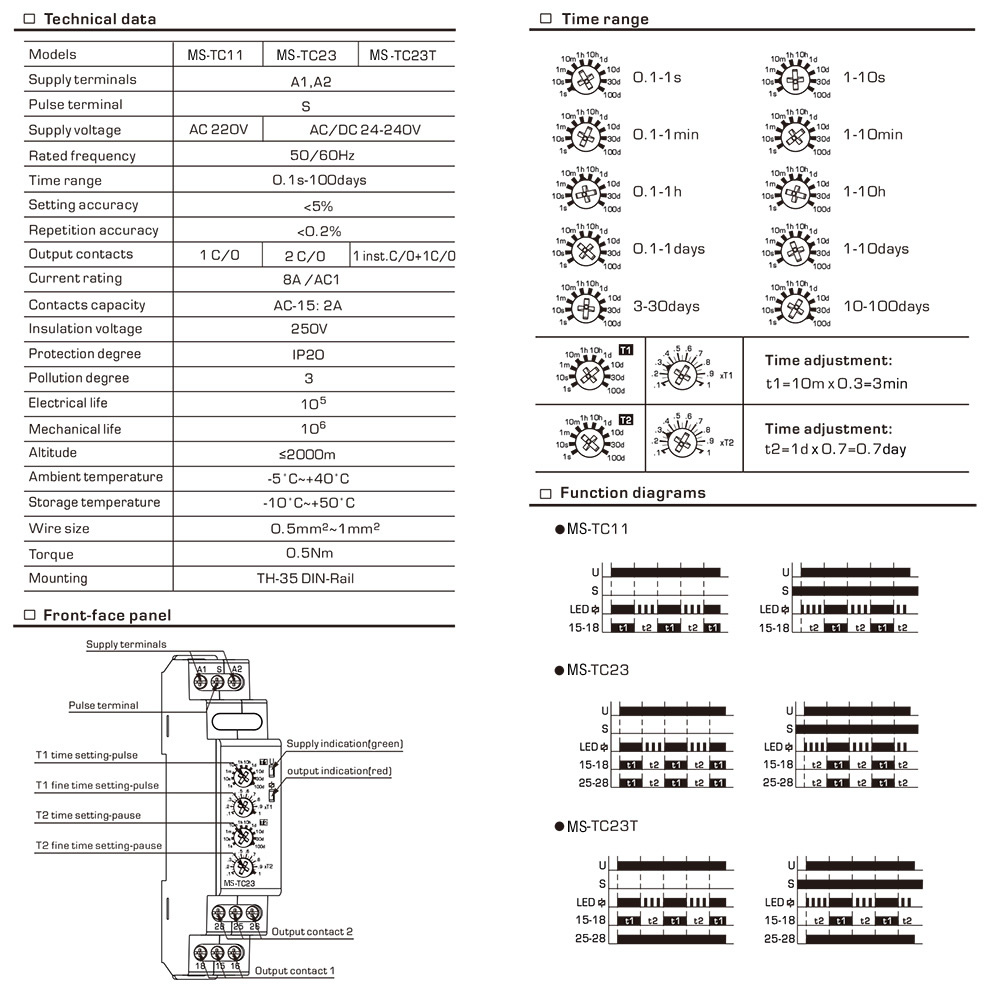

10 time ranges(1s,10s,1m,10m,1h,10h,1d,10d,30d,100d)
Repetition accuracy<0.2%

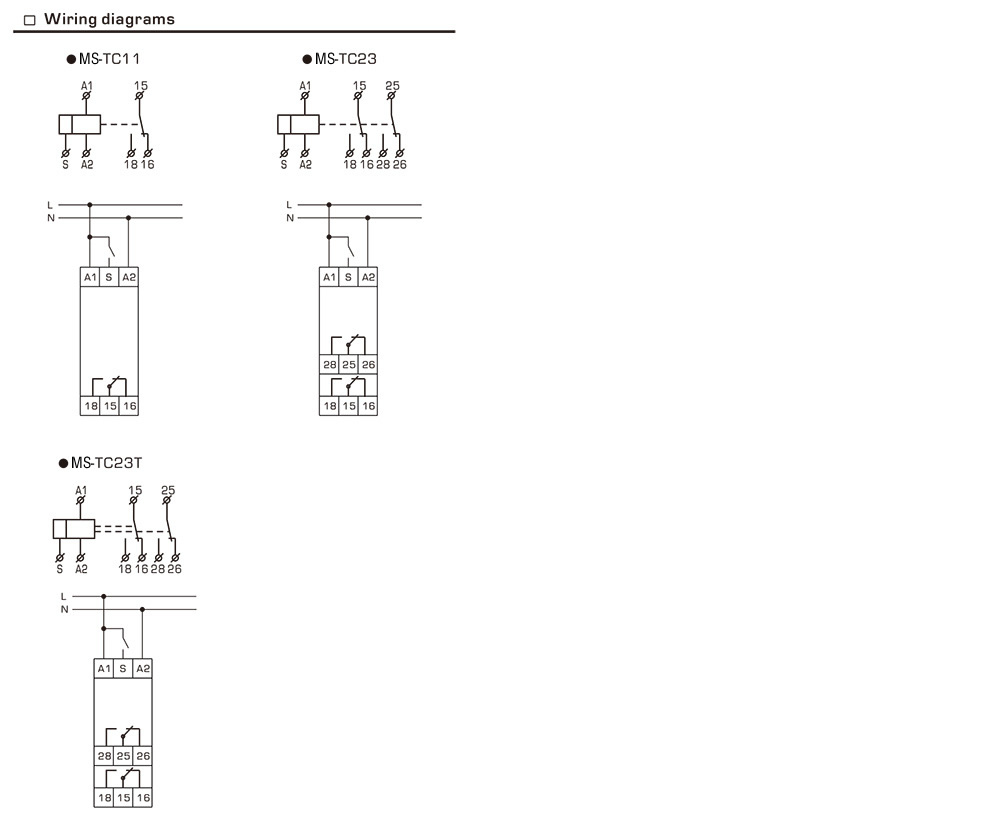

Function seleced via external jumper between A1-S
LED indication for power supply and relay status
1 Module Din-rail mounting
Time relays are used to time control of industrial and domestic automatic control systems. Operation mode: repeat cycle.
