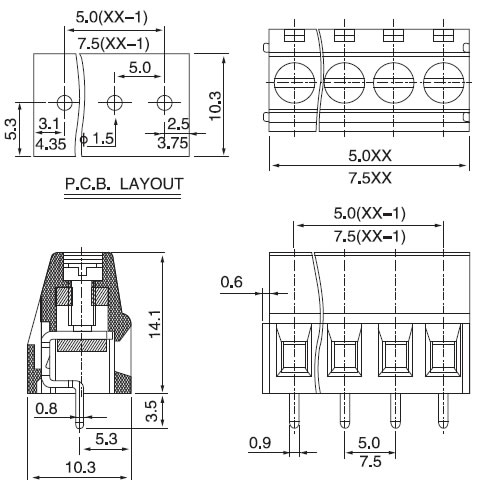

Product name:LT128
MATERIAL
Pitch:5.0/7.0mm
Poles:2P?3P
Screws:M2.5 Steel Ni plated
Wire guard:phosphor bronze?Ni plated or Stainless steel
Pin Herder:Brass,Sn plated
Housing:PA66,UL94V-O
ELECTRICAL
Rated voltage:300V
Rated current:10A
Withstanding voltage:AC1500V/1Min
Wire range:24~12AWG
MECHANICAL
Temp.range:-30?~+120?
Max soldering:+250? 5 Sec
Torque:0.4N.m/3.6Lb.in
Strip length:5~6mm
Pre:LT(HB635)
Next:LT128
