- Products >> Terminal block >> LT950

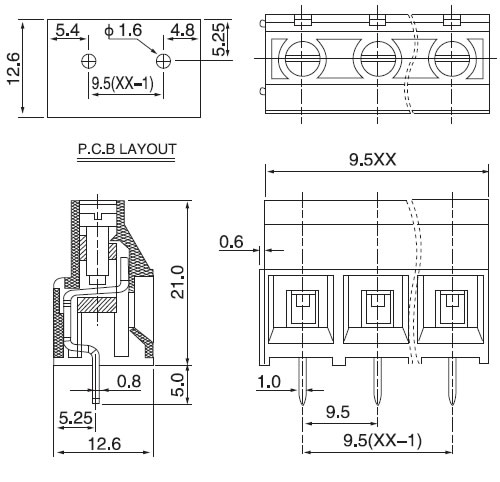

Product name:LT950
MATERIAL
Pitch:9.5mm
Poles:2P?3P
Screws:M4.0 Steel Ni plated
Pin Herder:Brass,Sn plated
Housing:PA66,UL94V-O
ELECTRICAL
Rated voltage:300V
Rated current:30A
Withstanding voltage:AC1500V/1Min
Wire range:26~10AWG
MECHANICAL
Temp.range:-40?~+105?
Max soldering:+250? 5 Sec
Torque:5.10kgf-cm/0.5N.m/4.43Lb.in
Strip length:6~7mm
