Weekly time switch with pulse program
3 or 10 years power reserve(lithium battery).
52 programs
Sealable cover of the front panel, easy setting by 4 keys.
Automatic summer/winter time switchover
LCD display
Holiday mode.
single channel
Manual control by keys combination.
Automatic transfer of weekdays
220-240VAC or 24-264VAC/DC input supply.
2 module Din-rail mounting

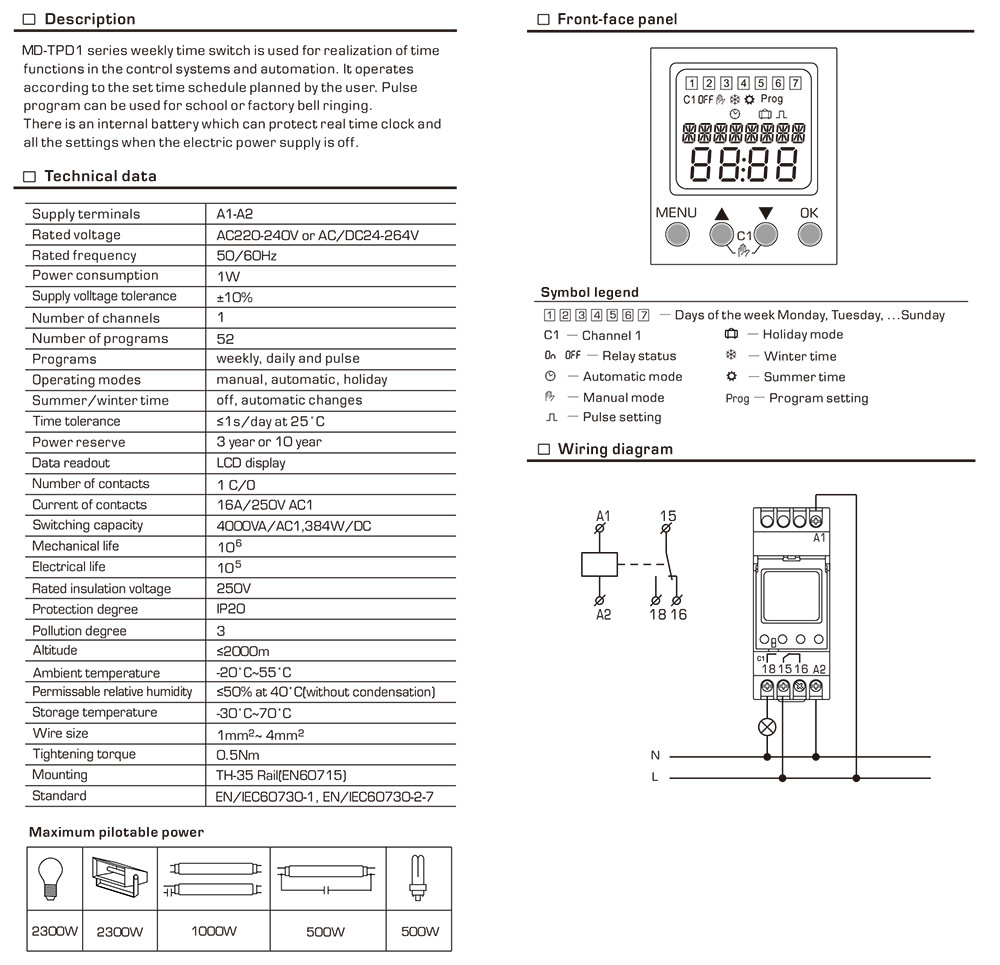

MD-TPD series weekly time switch is used for realization of time functions in the control systems and automation. It operates according to the set time schedule planned by the user. Pulse program can be used for school or factory bell ringing.
There is an internal battery which can protect real time clock and all the settings when the electric power supply is off.
