Digital time switch with weekly program
10 year power reserve(lithium battery).
90 programs
Sealable cover of the front panel, easy setting by 4 keys.
Automatic summer/winter time switchover
Back-lighted LCD display
Holiday mode.
Double channels (each channel can be assigned an individual program)
Manual control by keys combination.
Automatic transfer of weekdays
24-264V AC/DC input supply.
2 module Din-rail mounting

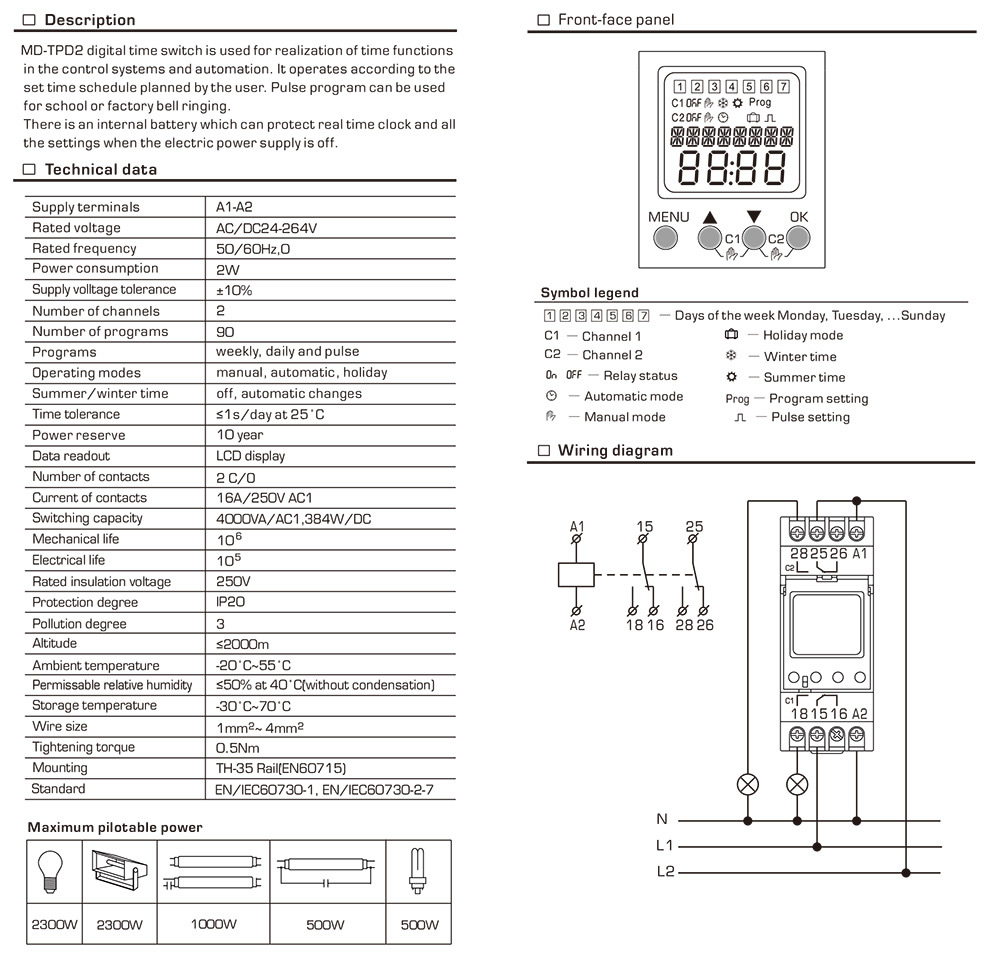

MD-TPD series weekly time switch is used for realization of time functions in the control systems and automation. It operates according to the set time schedule planned by the user. Pulse program can be used for school or factory bell ringing.
There is an internal battery which can protect real time clock and all the settings when the electric power supply is off.
