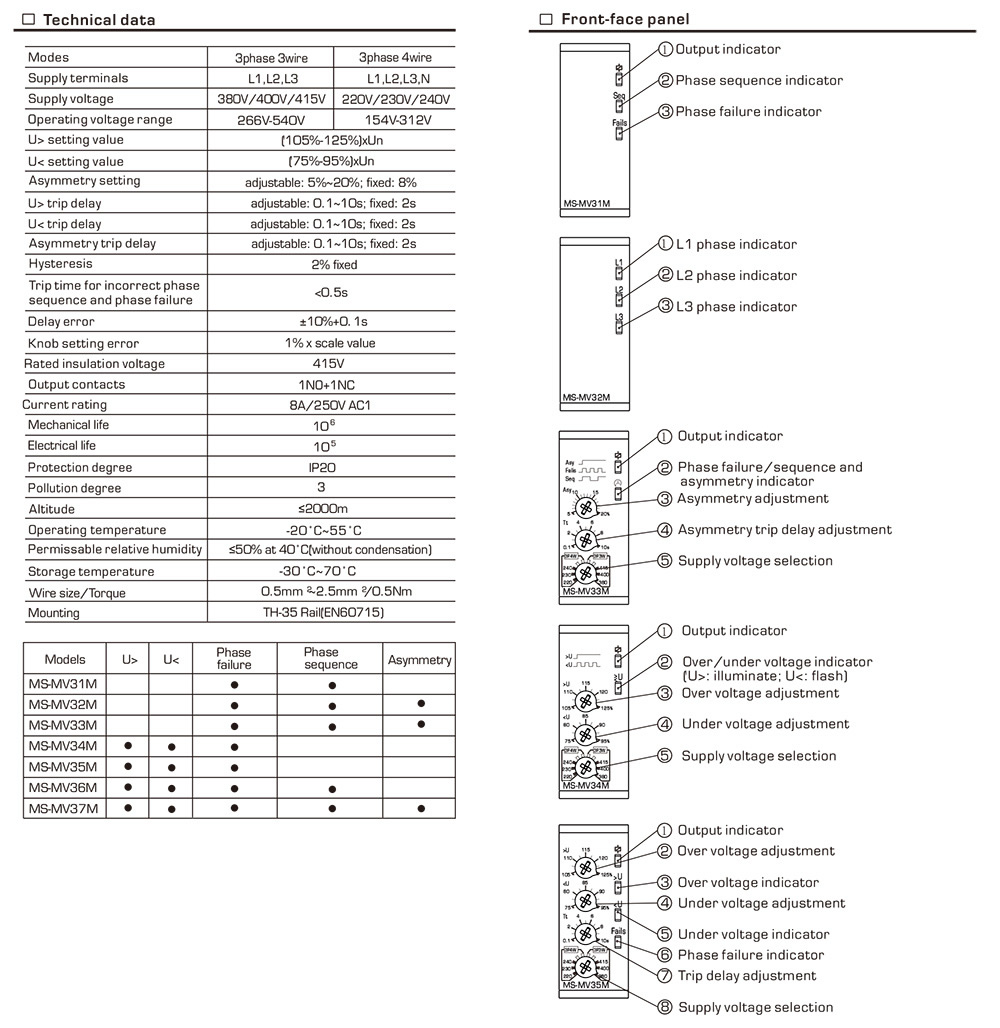

Product name:MS-MV31M~37M

Microcontroller based.
True RMS measurement
Select 3phase 3wire or 3phase 4wire mode by a knob.
N phase failure protection for 3phase 4 wire
1NO+1NC output-8A
LED indication for supply and output state
1 module Din-rail mounting

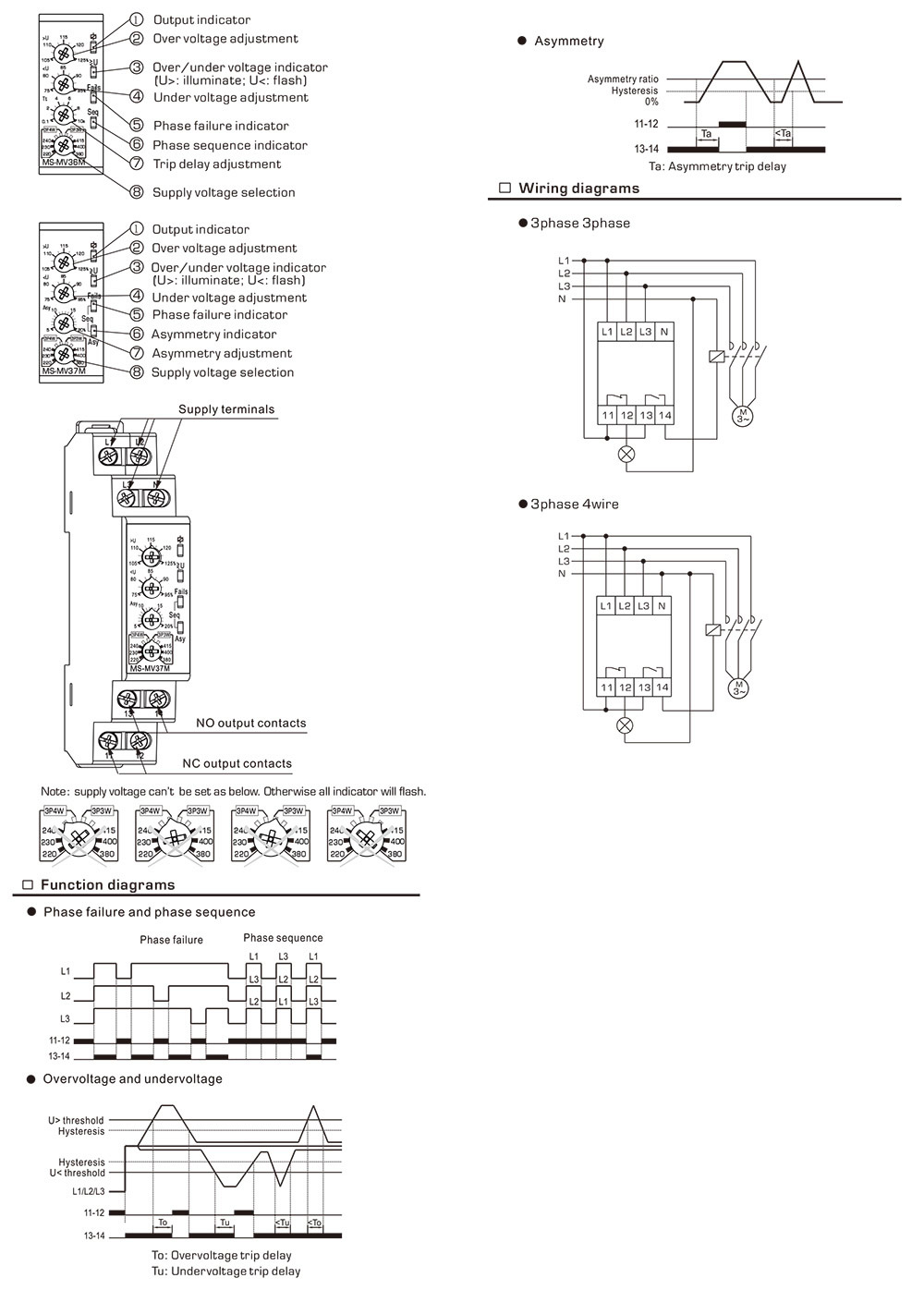

Three phase voltagemonitoring relay is used to protect the three-phase electric motors supplied from three-phase mains, against phase failure, incorrect phase sequence, voltage asymmetry, over and under voltage. User can select three phase three wire or three phase four wire mode as required
