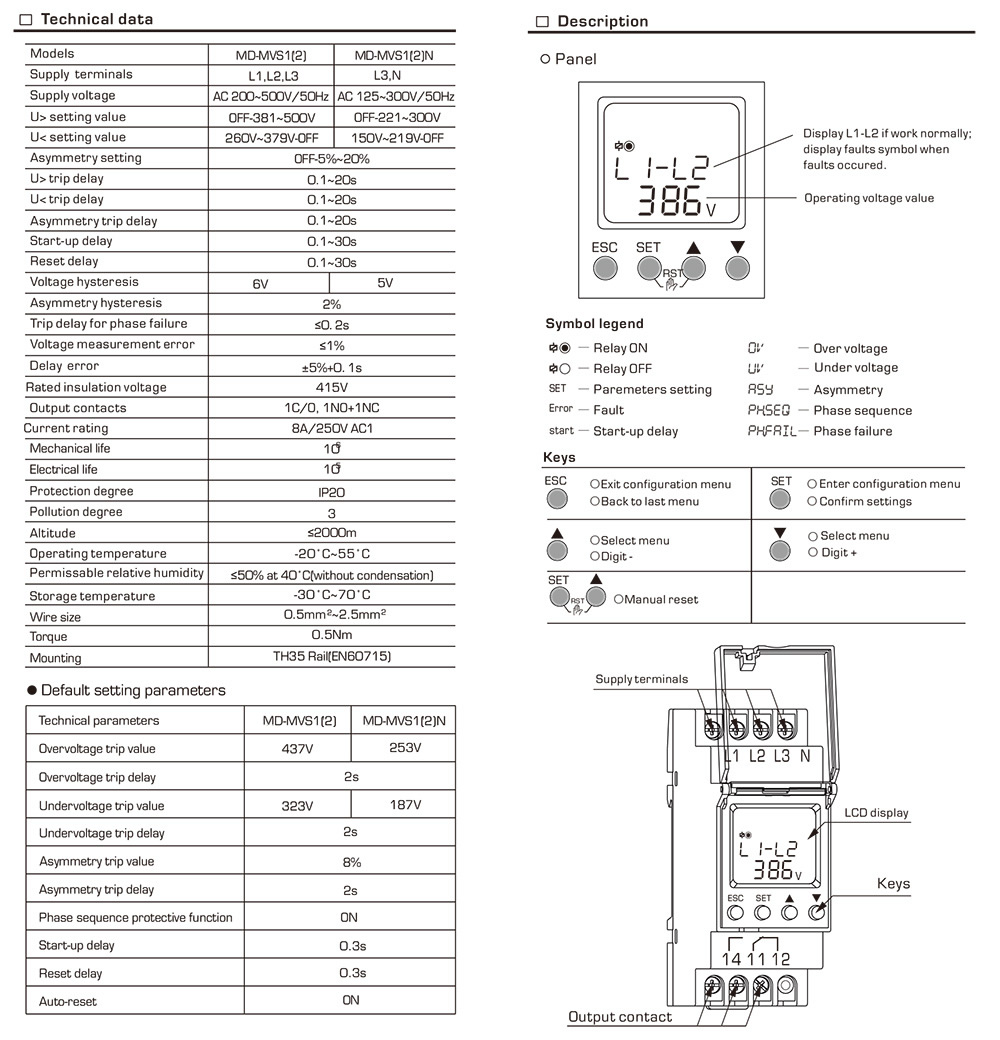

Microcontroller based
LCD indication for operating voltage and status

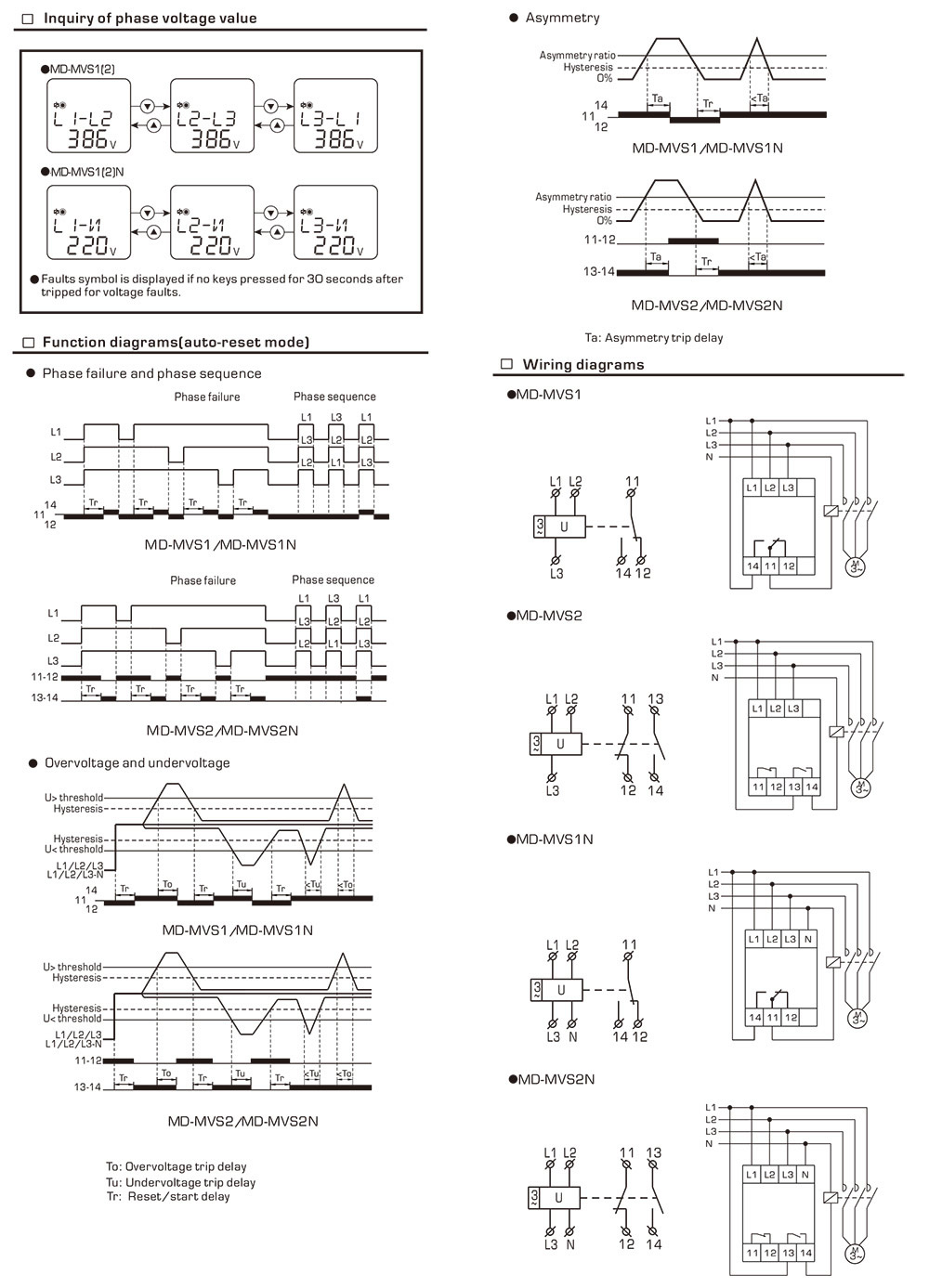

Overvoltage, undervoltage, phase failure, asymmetry and phase sequence protection
45Hz~65Hz wide measuring frequency
Supply voltage measurement (True RMS)
Menu setting for protection parameters
Test and manual reset by keys
N phase failure protection for 3phase 4wire system
2 module DIN rail housing
Three phase voltage monitoring relay is used to protect the three-phase electric motors supplied from three-phase mains, against phase failure, incorrect phase sequence, voltage asymmetry, over and under voltage. The PNM-32 voltage relay is designed for the three-phase system voltage control and load protection. It is possible to set minimum and maximum voltage, hysteresis, asymmetry and ON / OFF delay. The LCD display and keyboard enable easy parameters visualization and programming.
