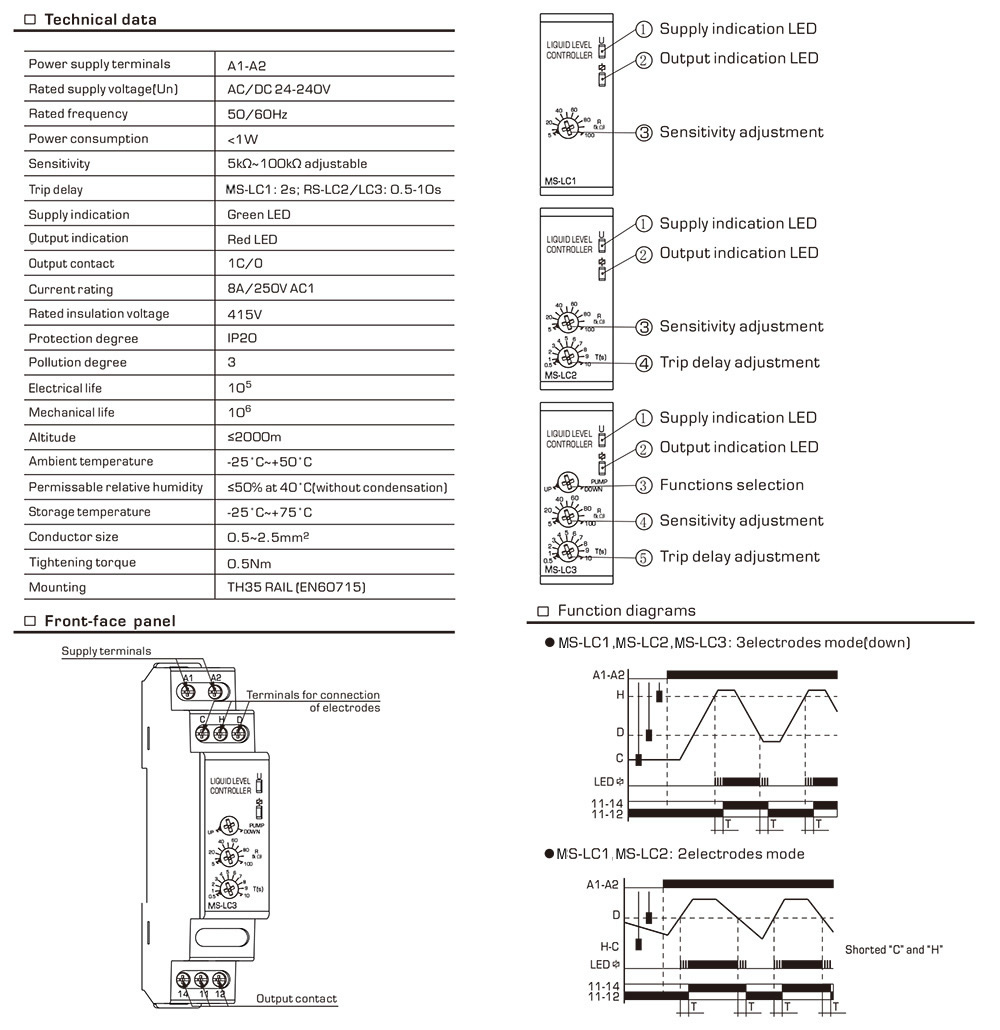

Microcontroller based.
Sensitivity 5kO~100kO adjustable
1 C/O output-8A

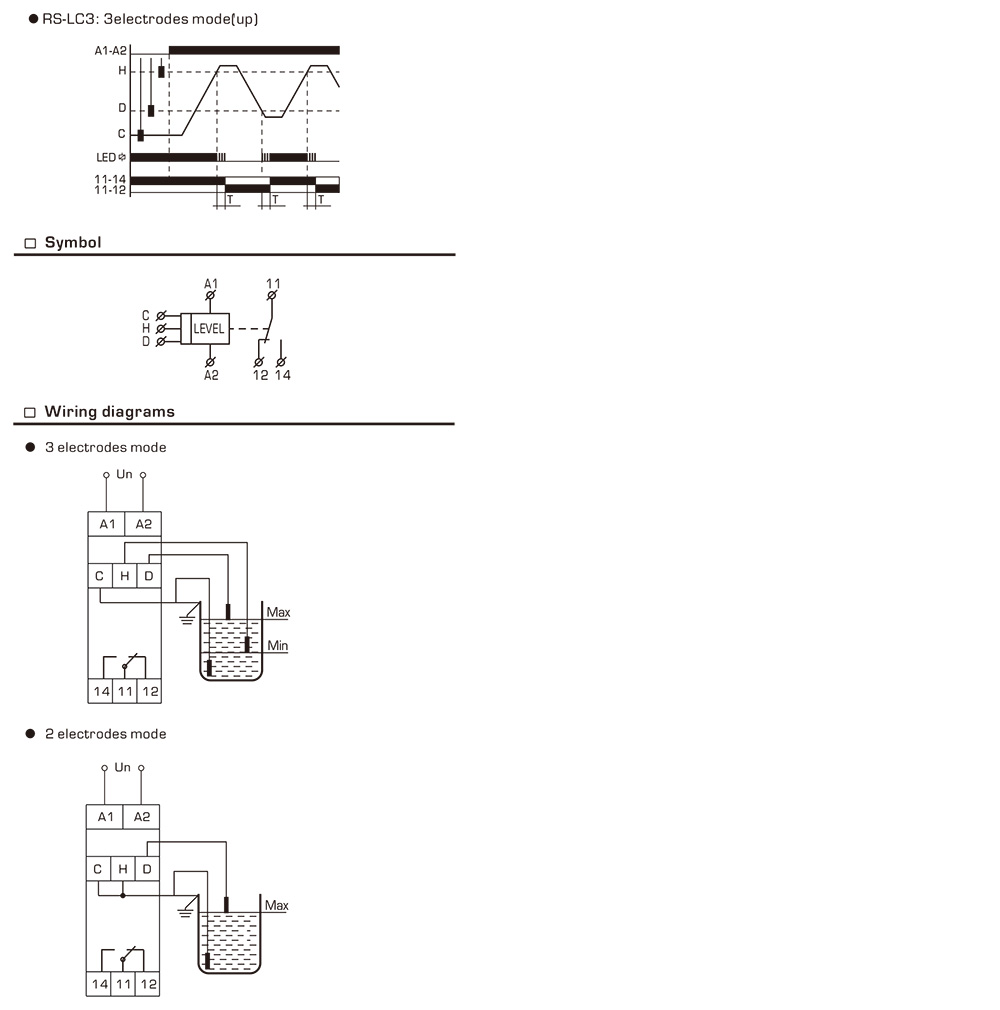

Work with 2 or 3 electrodes mode
24-240VAC/DC
Draining or filling function is selectable
LED indication for supply and output state(RS-LC3)
1 module Din-rail mounting
Liquid Level Control Relay is used for controlling liquid levels in wells and liquid tanks at industrial plants or agriculture irrigation.
