CJX7 series contactors
|
1.Application |
|
CJX7 Series AC contactors are suitable for frequency of 50/50Hz,rated insulation voltage up to 690-1000V,rated operational current up to 7A-95A at rated operational voltage up to 380V under the utilization category AC-3, They are mainly used for making breaking electric circuits at a ling distance and for frequent staring stopping and reversing control of AC motos,They comply witch IEC947,VDE0660, GB14048. |
|
|

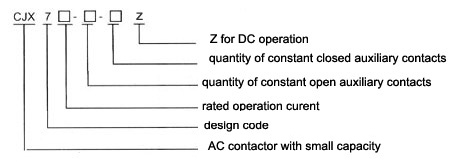

2.The model no.and 3RH19 21meaning |
|
|
|
2.The basis specification and parameter |
|
Type |
CJX7-10 1 |
CJX7-10 2 |
CJX7-10 3 |
CJX7-10 4 |
|
|
CJX7-10 15
CJX7-10 16
CJX7-10 17 |
CJX7-10 23 CJX7-10 24
CJX7-10 25 CJX710-26 |
CJX7-10 34
CJX7-10 35
CJX710 36 |
CJX7-10 44
CJX71-10 45
CJX7-10 46 |
|
AC-3 |
|
/e/AC-3/400V A |
7 |
9 |
12 |
9 |
12 |
17 |
25 |
32 |
40 |
50 |
65 |
80 |
95 |
|
400V kW |
3 |
4 |
5.5 |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
30 |
37 |
45 |
|
230V kW |
2.2 |
3 |
3 |
3 |
3 |
4 |
5.5 |
7.5 |
11 |
15 |
18.5 |
22 |
22 |
|
500V kW |
35 |
4.5 |
5.5 |
4.5 |
7.5 |
10 |
11 |
18.5 |
22 |
30 |
37 |
45 |
55 |
|
690V kW |
4 |
5.5 |
5.5 |
4.5 |
7.5 |
11 |
11 |
18.5 |
22 |
22 |
45 |
55 |
55 |
|
1000V kW |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
-- |
30 |
37 |
37 |
|
AC-1(40˚C,=690V) |
|
/e |
18 |
22 |
22 |
40 |
40 |
40 |
40 |
50 |
60 |
50 |
100 |
120 |
100 |
|
Auxiliary contact |
front mount |
3RH19 11 |
3RH19 21 |
|
|
|
side mount |
3RH19 21 |
|
