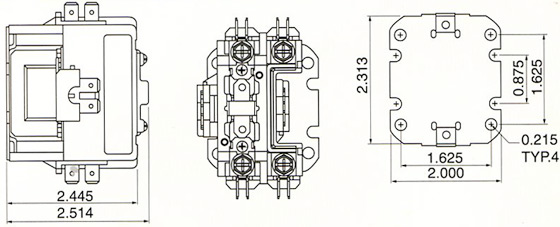

MC2-388 thru MC2-396 1/2 pole contactors( 30A thru 40A)
Straight-Through wiring ,Replaces 1 1/2 pole devices used primarily in residential central air conditioning Features
1. Replaces many type 117 contactors used by OEM's 2. Universal style mounting bracket fits existing mounting holes 3. Screw terminals and 1/4 quick connect terminals for easy installation |
|
Specifications |
Temperature range |
-40癋 to 150癋 |
Mechanical life (no load) |
ConforHM to UL and ARI specifications |
Electricl life |
Conforms to UL and ARI specifications 94-388 thru 94-390 achieve 200,000 cycles, make LRA at . 5 pf, break 125% of FLA at . 75 pf at rated voltage ,10 , 000 cycles make and break LRA at . 5 pf rated voltage 94-394 thru 94-396 achieve 100,000 cycles, make LAR at. 5 pf at rated voltage 6,000 cycles make and break LRA at . 5 pf rated voltage |
Weight (approximate) |
9.25 oz |
Coils Frequency |
50/60Hz |
Coil insulation |
Class B( 130? ) |
Termination |
Screw and double 1/4 Q.C. |
Operate |
85%of nominal coil coltage; 110% maximum safe operate |
Duty cycle |
Continuous | |
Coil data |
Steveco Number 30 Amp 40Amp |
Voltage AC |
Ress DC OHMS |
Current MA |
Nominal VA |
Max. inrush |
MC2-388 MC2-394 |
24 |
16.5 |
208 |
5 |
20 |
MC2-389 MC2-395 |
120 |
420 |
42 |
5 |
20 |
MC2-390 MC2-396 |
208/240 |
1825 |
21 |
5 |
20 | |
Contact ratings |
Type |
Voltage |
FLA |
LRA |
RES |
MC2-388 thru MC2-390 |
277 |
30 |
150 |
40 |
480 |
0 |
75 |
40 |
600 |
30 |
50 |
40 |
MC2-394 thru MC2-396 |
277 |
40 |
200 |
50 |
480 |
40 |
100 |
50 |
600 |
40 |
80 |
50 | |
|
