CJX1/N AC Contactors
|
|
|
|
|
CJX1-16/N, 22/N |
CJX1-110/N, 140/N |
CJX1-400/N, 475/N |
|
Application |
|
CJX- /N mechanical inter-locking reversible contactor is suitable for the circuit of frequency AC 50/60Hz,rated insulation voltage up to 660V or 1000V.rated operationn current up to 630A ,it is mainly used for controlling AC motors by turning and reversing .the products accord with the standards such as IEC947-4-1, DIN VDE 0660 and Gb 14048
|

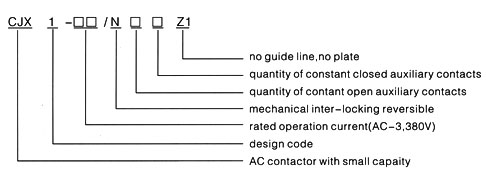

Type and meanings |
|
|
|
|
fundamenfal parameter |
|
Type |
(AC-3 400/380V) Ra ted operation current |
Power of controllable motor KW (AC-3) |
Thermal relay matched |
Fuse specification A |
|
230V/220V |
400V/380V |
500V |
690/660V |
1000V |
Type 1 |
Type 2 |
|
CJX1-9/N |
9 |
2.4 |
4 |
5.5 |
5.5 |
- |
JRS2-50 |
35 |
25 |
|
CJX1-12/N |
12 |
3.3 |
5.5 |
7.5 |
7.5 |
- |
JRS2-50 |
35 |
25 |
|
CJX1-16/N |
16 |
4 |
7.5 |
10 |
10 |
- |
JRS2-52 |
65 |
35 |
|
CJX1-22/N |
22 |
6.1 |
11 |
11 |
11 |
- |
JRS2-52 |
65 |
35 |
|
CJX1-32/N |
32 |
8.5 |
15 |
21 |
23 |
- |
JRS2-55 |
80 |
63 |
|
CJX1-45/N |
45 |
15 |
22 |
30 |
39 |
- |
JRS2-58 |
160 |
100 |
|
CJX1-63/N |
63 |
18.5 |
30 |
41 |
55 |
- |
JRS2-58 |
160 |
125 |
|
CJX1-75/N |
75 |
22 |
37 |
50 |
67 |
39 |
JRS2-58 |
25 |
160 |
|
CJX1-85/N |
85 |
26 |
45 |
59 |
67 |
38 |
JRS2-58 |
25 |
160 |
|
CJX1-110/N |
110 |
37 |
55 |
76 |
100 |
55 |
JRS2-60 |
315 |
250 |
|
CJX1-140/N |
140 |
43 |
75 |
98 |
100 |
55 |
JRS2-60 |
315 |
250 |
|
CJX1-170/N |
170 |
55 |
90 |
118 |
156 |
90 |
JRS2-62 |
355 |
250 |
|
CJX1-205/N |
205 |
64 |
110 |
145 |
156 |
90 |
JRS2-62 |
355 |
250 |
|
CJX1-250/N |
250 |
78 |
132 |
178 |
235 |
132 |
JRS2-66 |
500 |
315 |
|
CJX1-300/N |
300 |
93 |
160 |
210 |
235 |
132 |
JRS2-66 |
500 |
315 |
|
CJX1-400/N |
400 |
125 |
220 |
284 |
375 |
250 |
JRS2-66 |
800 |
500 |
|
CJX1-475/N |
475 |
148 |
252 |
342 |
432 |
250 |
JRS2-66 |
800 |
500 |
|
CJX1-630/N |
630 |
191 |
330 |
434 |
573 |
600 |
JRS2-68 |
- |
630 |
Note: 1. CJX1-9/N~CJX1-630N ,use 50/60Hz general coil voltage only under the condition that the time separation between the ouputs of the two control signals which separately control the clockwise and anti-clockwise of motor must be at least 50ms
2. The fuse in the above table are chosen and used according to IEC-947-4-1 standard;
"1"type conncerted protection-allowing contactor and thermal relay to be damaged;
"2" type concerted protection -thermal relay not be damaged the contact of contactor allowed to be fused (if the contact is easily separated).
|
|
Applied electrical circuit |
|
|
|
|
|
Main return circuit
S0 "off" push-button;
S1 "on" push button of anti-clockwise style
S2 "on" push-button of clockwise style |
Control refurn circuit of instantaneous contaction control
S chosen switches of clockwise and anti-clockwise;
K1 contator of controlling clockwise;
K2 contator of controlling anti-clockwise; |
Control refurn circuit of keeping contacting control
F1 return circuit fuse;
F1 overload relay;
F2 fuse for contnolling return circuit |
|
|

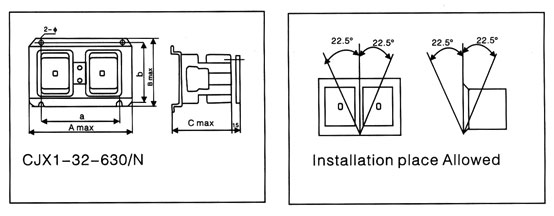

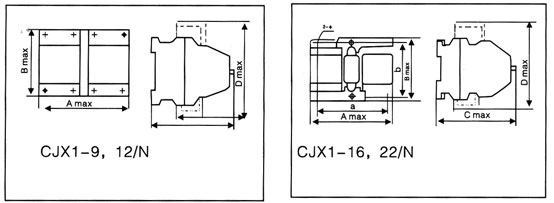

Outline and installation dimensions |
|
Type |
A max |
B max |
C max |
D max |
a |
b |
? |
Remark |
|
CJX1-9/22 |
127 |
79 |
110 |
100 |
- |
- |
- |
Installed with 35mm track or 75mm track |
|
CJX1-12/22 |
127 |
79 |
110 |
100 |
- |
- |
- |
|
CJX1-16/22 |
127 |
112 |
120 |
120 |
100 |
95 |
5 |
|
CJX1-22/22 |
127 |
112 |
120 |
120 |
100 |
95 |
5 |
|
CJX1-32/22 |
170 |
110 |
120 |
12 |
145 |
95 |
5 |
|
CJX1-45/22 |
240 |
165 |
141 |
- |
180 |
145 |
7 |
|
CJX1-63/22 |
240 |
165 |
141 |
- |
180 |
145 |
7 |
|
CJX1-75/22 |
260 |
175 |
158 |
- |
200 |
155 |
7 |
|
CJX1-85/22 |
260 |
175 |
158 |
- |
200 |
155 |
7 |
|
CJX1-110/22 |
300 |
210 |
168 |
- |
240 |
185 |
9 |
|
CJX1-140/22 |
300 |
210 |
168 |
- |
240 |
185 |
9 |
|
CJX1-170/22 |
330 |
240 |
203 |
- |
270 |
215 |
9 |
|
CJX1-205/22 |
330 |
240 |
203 |
- |
270 |
215 |
9 |
|
CJX1-250/22 |
350 |
265 |
219 |
- |
290 |
240 |
11 |
|
CJX1-300/22 |
350 |
265 |
219 |
- |
290 |
240 |
11 |
|
CJX1-400/22 |
380 |
265 |
243 |
- |
310 |
240 |
11 |
|
CJX1-475/22 |
380 |
265 |
243 |
- |
310 |
240 |
11 |
|
CJX1-630/22 |
520 |
276 |
255 |
- |
400 |
280 |
13.5 |
|
|
CJXX1-9~32/Z DC operation AC contactor |
|
Type |
a max |
B |
C |
d |
e max |
f |
? |
|
CJX1-9/22 |
79 |
60�0.60 |
46 |
35�0.50 |
106 |
8 |
4.8�0.480 |
|
CJX1-12/22 |
79 |
60�0.60 |
46 |
35�0.50 |
106 |
8 |
4.8�0.480 |
|
CJX1-16/22 |
89 |
75�0.60 |
46 |
35�0.50 |
116 |
8 |
4.8�0.480 |
|
CJX1-22/22 |
89 |
75�0.60 |
46 |
35�0.50 |
116 |
8 |
4.8�0.480 |
|
|
|
