CJT1 AC Contactors
|
Application |
|
CJT1 series AC contactors are suitable for frequency 50Hz,rated insulation voltage up to 380V,rated operation current 10-150A.It is mainly used for making or breaking electric circuits at a long distance and for frequent starting & stopping and controlling AC motors.It is used in combination with thermal relay to compose a magnetic motor starter.The product accords with such standards as IEC 60947-4-1,GB14048.4
|

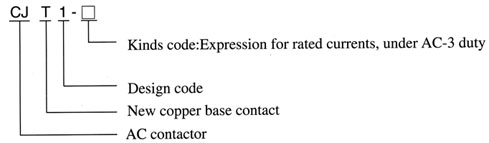

Type and meanings |
|
|
|
|
|
|
|
|
CJT1-10 |
CJT1-20 |
CJT1-40 |
|
|
|
|
|
CJT1-60 |
CJT1-100 |
CJT1-150 |
|
|
Technical data |
|
Type |
Rated Insulation voltage
Ui/V |
Rated operating voltage
Ue/V |
AC-3
Rated power
/kW |
Conventional thermal current/A |
Incessant work system amount working electricity Flow A |
Endurance/thousand times |
highest frequency
of operation
/(times穐-1) |
Operating voltage range of coll |
|
Machinery |
Electric |
AC-3 |
AC-4 |
|
CJT1-10 |
380 |
220 |
2.4 |
10 |
10 |
300 |
60 |
600 |
300
120 |
(85%~110%)Us |
|
380 |
4 |
|
|
|
CJT1-20 |
220 |
5.8 |
20 |
20 |
|
380 |
10 |
|
|
|
CJT1-40 |
220 |
11 |
40 |
40 |
|
380 |
20 |
|
|
|
CJT1-60 |
220 |
17 |
60 |
60 |
|
380 |
30 |
|
|
|
CJT1-100 |
220 |
28 |
100 |
100 |
|
380 |
50 |
|
|
|
CJT1-150 |
220 |
43 |
150 |
150 |
|
380 |
75 |
|
|
|

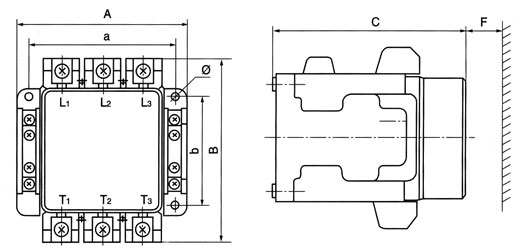

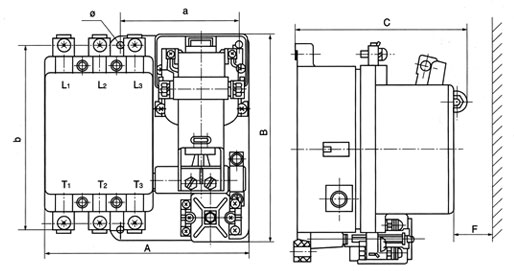

Outline and installation dimensions |
|
Type |
A |
B |
C |
a |
b |
? |
F |
|
CJT1-10 |
70 |
70 |
96.5 |
56 |
58 |
5.0 |
10 |
|
CJT1-20 |
92 |
102 |
110.0 |
76 |
68 |
5.0 |
10 |
|
CJT1-40 |
115 |
128 |
125.0 |
100 |
75 |
5.5 |
10 |
|
CJT1-60 |
170 |
178 |
135.0 |
98 |
160 |
7.0 |
10 |
|
CJT1-100 |
195 |
204 |
135.0 |
110 |
180 |
9.0 |
180 |
|
CJT1-150 |
220 |
232 |
154.0 |
130 |
205 |
11.0 |
10 |
|
|
