Cjx7(A)-9~185 ac contactor
|
Application |
|
|
CJX7(A)-9~185 AC contactor (hereafter refer to as contactor) is mainly used in power system with AC50Hz (or 60Hz), therated working voltage up to 660V,under the applicatio category of AC-3,when the rated working voltage 380V,the rated operating current to 185A electrical, for the long-distance range making and breaking the electric circuit, and combines the electromagnetism starter with the suitabe thrmal ovetload relay or the electronic protector to protect against the possible overload elctric circuit during operation (running). |
|
|
|

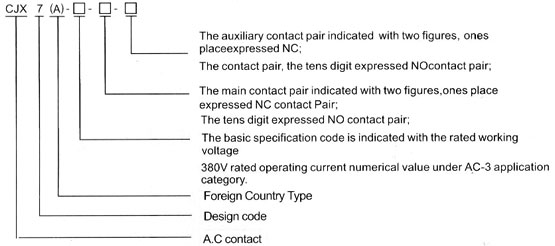

Type and meaning |
|
|
|
Main circuits basic parameters
|
Type |
Frame code |
Rated insulation voltage Ui V |
Convensional free air heat current Ith |
AC-3 rated operating current Ie A |
AC-3 control the max. power KW of generator |
|
220V |
380V |
660V |
220V |
380V |
660V |
|
CJX7(A)-9 |
16 |
100 |
25 |
9 |
9 |
7 |
2.2 |
4 |
5.5 |
|
CJX7(A)-12 |
27 |
12 |
12 |
9 |
3 |
5.5 |
7.5 |
|
CJX7(A)-16 |
30 |
17 |
17 |
10 |
4 |
7.5 |
9 |
|
CJX7(A)-26 |
26 |
45 |
26 |
26 |
17 |
6.5 |
11 |
15 |
|
CJX7(A)-30 |
40 |
55 |
32 |
32 |
21 |
9 |
15 |
18.5 |
|
CJX7(A)-40 |
60 |
37 |
37 |
25 |
11 |
18.5 |
22 |
|
CJX7(A)-50 |
75 |
100 |
50 |
50 |
35 |
15 |
22 |
30 |
|
CJX7(A)-63 |
115 |
65 |
65 |
43 |
18.5 |
30 |
37 |
|
CJX7(A)-75 |
125 |
75 |
75 |
46 |
22 |
37 |
40 |
|
CJX7(A)-95 |
110 |
145 |
96 |
96 |
65 |
25 |
45 |
55 |
|
CJX7(A)-110 |
160 |
110 |
110 |
82 |
30 |
55 |
75 |
|
CJX7(A)-145 |
250 |
145 |
145 |
100 |
43 |
75 |
95 |
|
CJX7(A)-185 |
275 |
185 |
185 |
130 |
51 |
90 |
100 |
|
