Product name:LMZ3-0.66 LMZ3D Current Transformers
LMZ3-0.66 LMZ3D Current Transformers

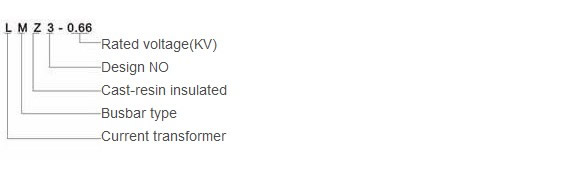

LMZ3/LMZ3d-0.66 guide rail type CT:
LMZ3/LMZ3D-0.66 Technical date (MM)
| Type | Rated ratio(A) | Conflux platoon | Straight-through turn No. | Accuracy class & rated output COSØ=0.8 | Rated insulation leer(kV) | |||
| Section | Purchase | 0.5 | 1 | |||||
|
LMZ3-0.66 LMZ3D-0.66 |
Fixed Bus |
5-100/5 | - | - | - | 5 | 10 | 0.66/3 |
| 5-100/5 | - | - | - | 5 | 10 | |||
| Ø28 | 100/5 | - | - | 1 | 5 | 10 | ||
| 150/5 | - | - | 1 | 5 | 10 | |||
| -32 | 100/5 | 30-8 | 1 | 1 | 5 | 10 | ||
| 150/5 | 30-8 | 1 | 1 | 5 | 10 | |||
| 200/5 | 30-8 | 1 | 1 | 5 | 10 | |||
| 300/5 | 30-8 | 1 | 1 | 5 | 10 | |||
| -42 | 300/5 | 40-10 | 1 | 1 | 5 | 10 | ||
| 400/5 | 40-10 | 1 | 1 | 5 | 10 | |||
| 500/5 | 40-10 | 1-2 | 1 | 5 | 10 | |||
| 600/5 | 40-10 | 1-2 | 1 | 5 | 10 | |||
| -52 | 400/5 | 50-10 | 1 | 1 | 5 | 10 | ||
| 500/5 | 50-10 | 1 | 1 | 5 | 10 | |||
| 600/5 | 50-10 | 1 | 1 | 5 | 10 | |||
| 800/5 | 50-10 | 1 | 1 | 5 | 10 | |||
| -58 | 500/5 | 55-10 | 1 | 1 | 5 | 10 | ||
| 600/5 | 55-10 | 1 | 1 | 5 | 10 | |||
| 800/5 | 55-10 | 1 | 1 | 5 | 10 | |||
| -62 | 600/5 | 60-10 | 1-2 | 1 | 5 | 10 | ||
| 800/5 | 60-10 | 1-2 | 1 | 5 | 10 | |||
| 1000/5 | 60-10 | 1-2 | 1 | 10 | 15 | |||
| -85 | 800/5 | 80-10 | 1-3 | 1 | 5 | 10 | ||
| 1000/5 | 80-10 | 1-3 | 1 | 10 | 15 | |||
| 1200/5 | 80-10 | 1-3 | 1 | 10 | 15 | |||
| -105 | 1000/5 | 100-10 | 2-3 | 1 | 10 | 15 | ||
| 1200/5 | 100-10 | 2-3 | 1 | 10 | 15 | |||
| 1500/5 | 100-10 | 2-3 | 1 | 10 | 15 | |||
| 2000/5 | 100-10 | 2-3 | 1 | 15 | 20 | |||
| -125 | 2000/5 | 120-10 | 2-3 | 1 | 15 | 20 | ||
| 2500/5 | 120-10 | 2-3 | 1 | 15 | 20 | |||
| 3000/5 | 120-10 | 2-3 | 1 | 15 | 20 | |||
| 4000/5 | 120-10 | 2-3 | 1 | 15 | 20 | |||

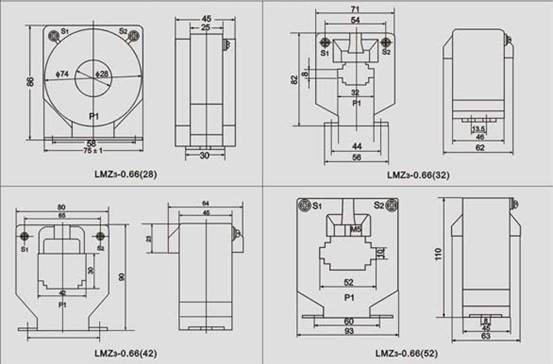

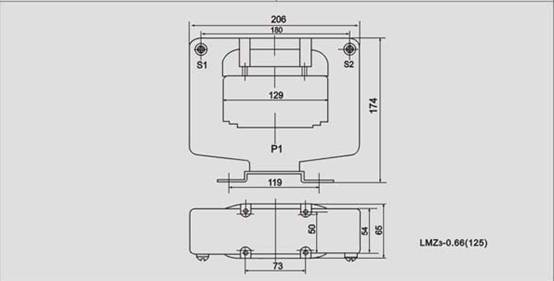

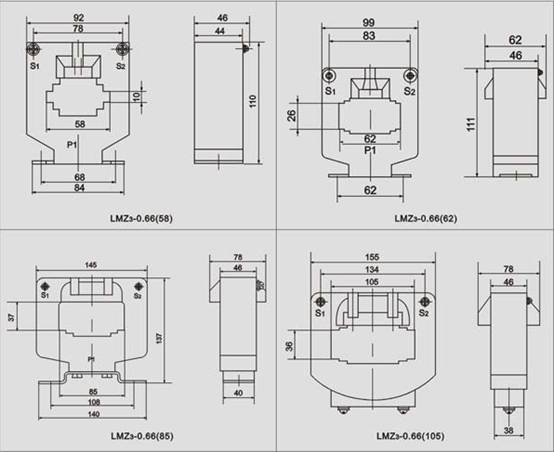

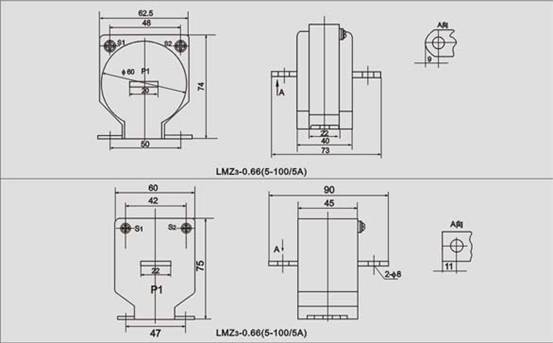

LMZ3-0.66 LMZ3D-0.66 Overall dimension drawing
