Product name:LMZJ1-0.5 LMZ1-0.5 Current Transformers
LMZJ1-0.5 LMZ1-0.5 Current Transformers

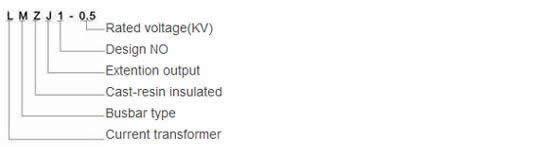

LMZJ1-0.5 LMZ1-0.5 Type description
LMZJW1-0.5 LMZW1-0.5 Technical date
| Type | Rated ratio(A) | Straight-through turn No. | Accuracy class/rated output COS Ø=0.8 | Rated insulation level | |||
| 0.2 | 0.5 | 1 | 3 | ||||
|
LMZJ1-0.5 LMZ1-0.5 |
15/5 | 10 | (5)(2.5) | 10 | 15 | - | 0.5/3 KV |
| 20/5 | 10 | ||||||
| 30/5 | 5 | ||||||
| 40/5 | 5 | ||||||
| 50/5 | 3 | ||||||
| 75/5 | 2 | ||||||
| 100/5 | 2 | ||||||
| 150/5 | 1 | ||||||
| 200/5 | 1 | ||||||
| 300/5 | 1 | ||||||
| 400/5 | 1 | 5 | |||||
| 500/5 | 1 | ||||||
| 600/5 | 1 | ||||||
| 800/5 | 1 | ||||||
| 1000/5 | 1 | 10 | 15 | 20 | 20 | ||
| 1500/5 | 1 | ||||||
| 2000/5 | 1 | ||||||
| 3000/5 | 1 | ||||||
| 4000/5 | 1 | ||||||
| 5000/5 | 1 | ||||||

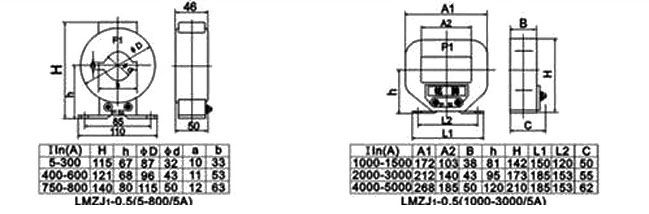

LMZJW1-0.5 LMZW1-0.5 Overall dimension drawing
