Product name:MR Current Transformers

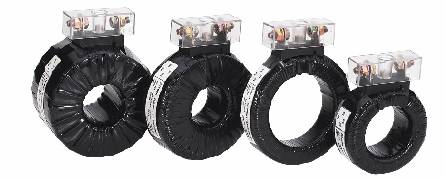

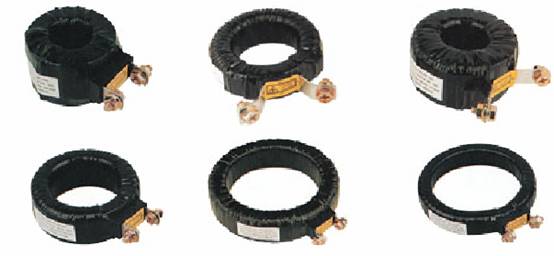

MR Current Transformers

PR-low-voltage-current-transformer

MR Current Transformer Series:

-Primary current:
Secondary current:
Standard approval:
Maximum voltage:
Frequency:
Rated load:
Class:
Short-time thermal current:
Rated security coefficient:		 30A-5000A
5A, 1A
BS7626, IEC185
0.72KV
50-60Hz
5VA-15VA
1.0, 3.0
Ith=60 X Ih
FS<5

Specification & Dimensions (mm)

Model
Specification
ID
CD
HT
MR-28
30/5A-60/5A
28
70
40
MR-42
100/5A-250/5A
42
80
30
MR-45
300/5A
45
80
30
MR-60
400/5A
60
100
30
MR-60
500/5A 600/5A
60
100
30
MR-85
800/5A-1600/5
85
120
20
MR-125
2000/A-5000/5
125
165
20

Noted: For measuring current transformers, the accuracy class is designated by
the highest permissible percentage current (ratio) error at the rated current
prescribed for the accuracy class concerned.

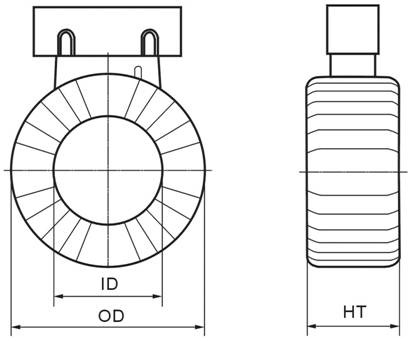

PR Series outline drawing:

Low Voltage Current Transformer , MR Current Transformers

MR CURRENT TRANSFORMERS

MR CURRENT TRANSFORMERS

Specification & Dimensions (mm)

Model
Specification
ID
CD
HT
MR-28L
30/5A-60/5A
28
70
40
MR-42L
100/5A-250/5A
42
80
30
MR-45L
300/5A
45
80
30
MR-60L
400/5A
60
100
30
MR-60L
500/5A 600/5A
60
100
30
MR-85L
800/5A-1600/5
85
120
20
MR-125L
2000/A-5000/5
125
165
20

Noted: For measuring current transformers, the accuracy class is designated by the highest permissible percentage current (ratio) error at the rated current prescribed for the accuracy class concerned.

outline drawing:

PR outline drawing:
