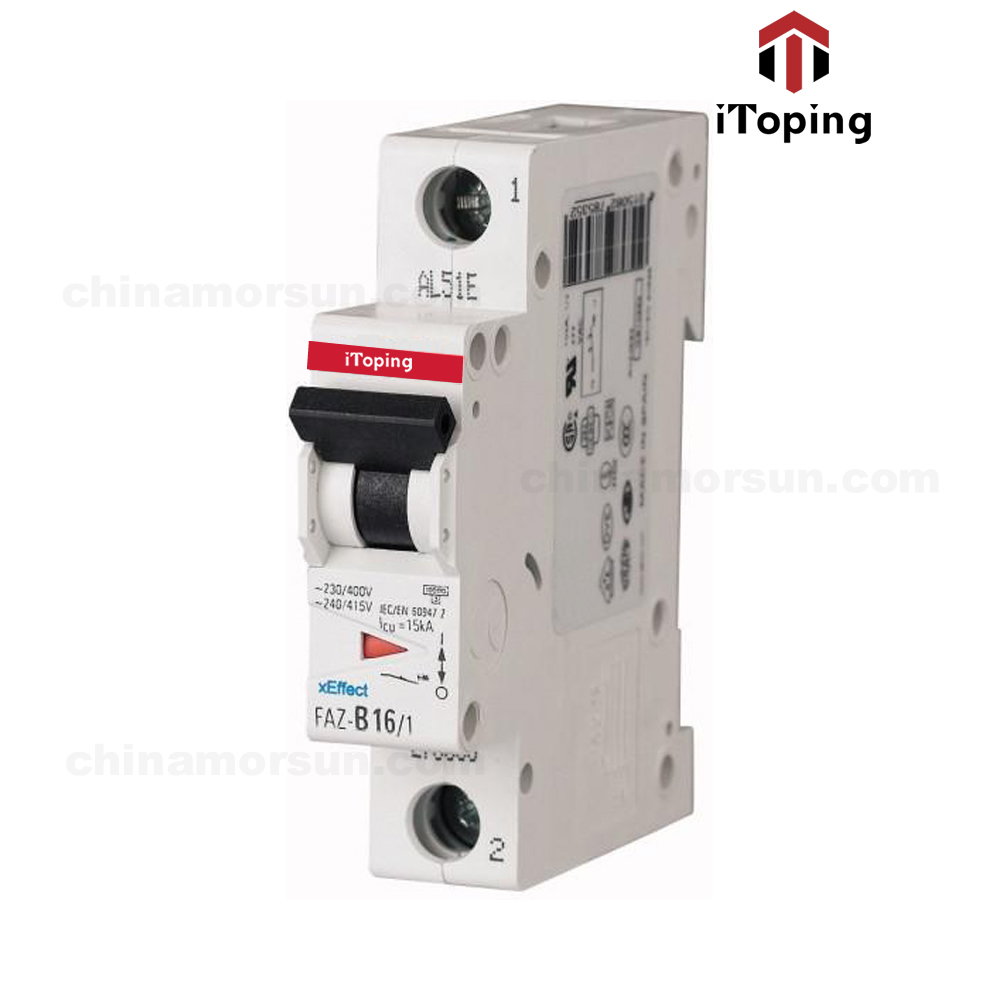

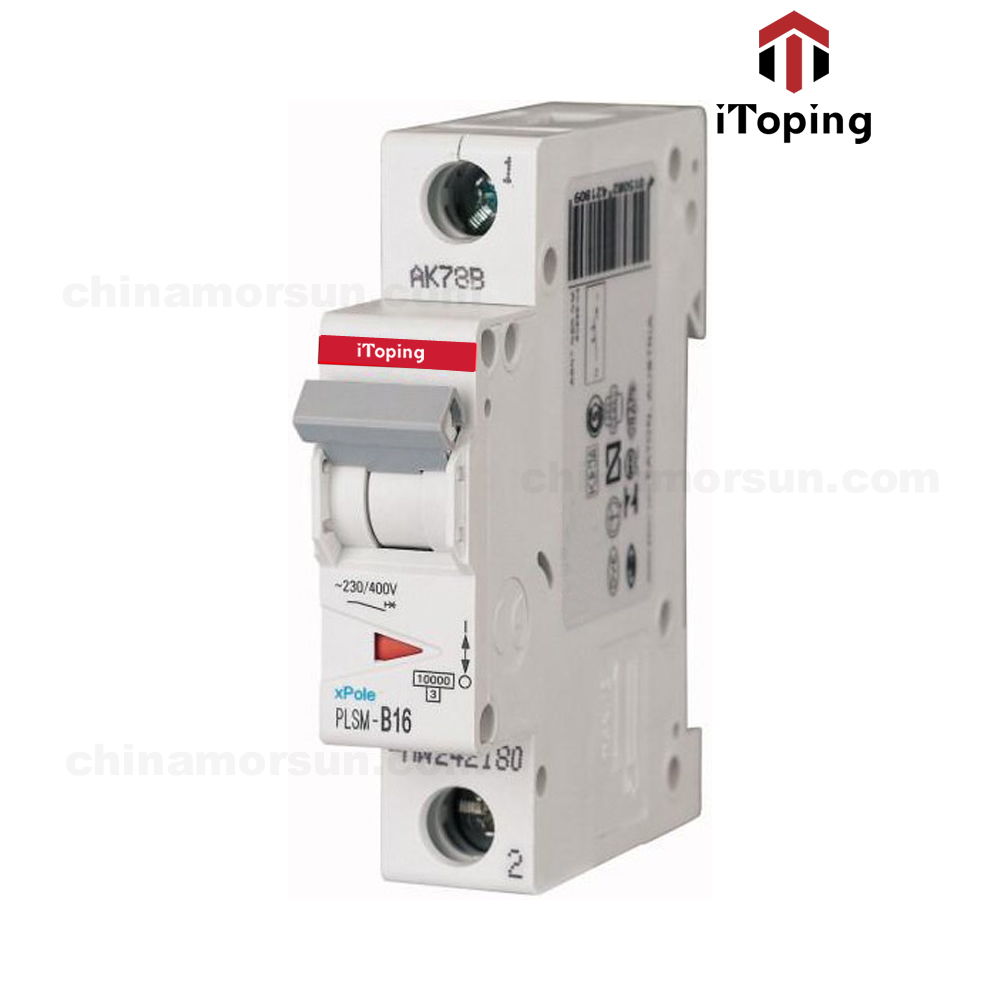

Eaton miniature circuit breakers are designed for all commercial and residential applications with the following features:

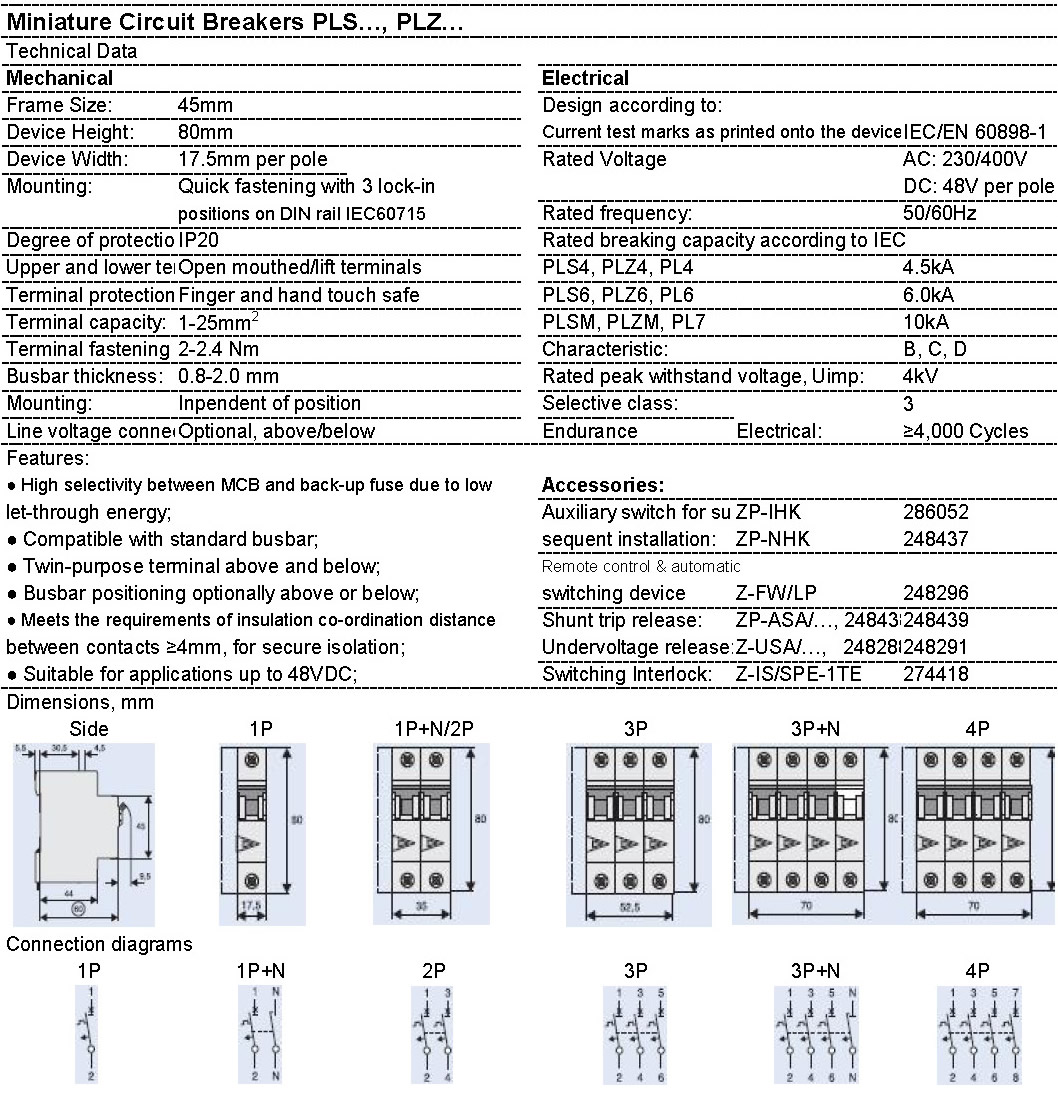

¦ High selectivity between MCB and back-up fuse due to let-through energy;
¦ Compatible with standard busbars;
¦ Twin-purpose terminal above and below;
¦ Busbar positioning optionally above or below;
¦ Meets the requirements of installation co-ordination distance between contacts more than 4mm, for secure isolation;
¦ Suitable for applications up to 48VDC;
