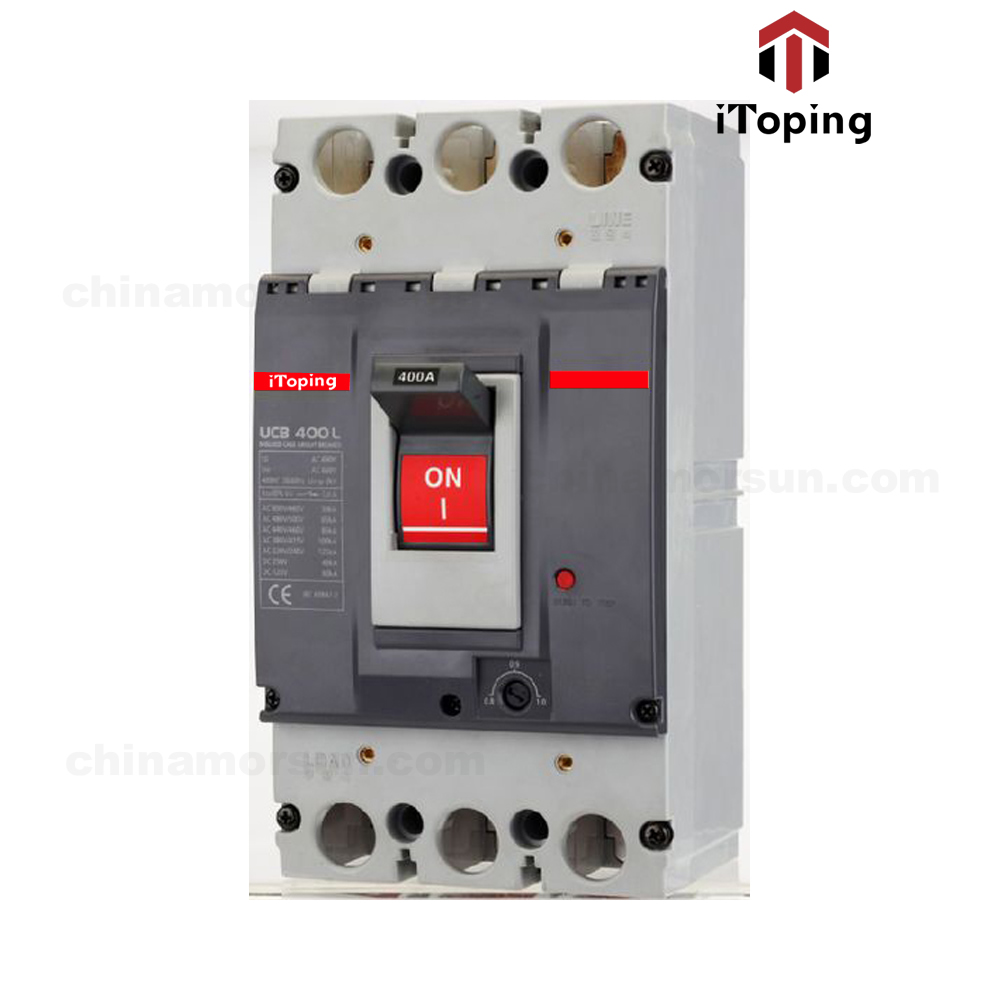

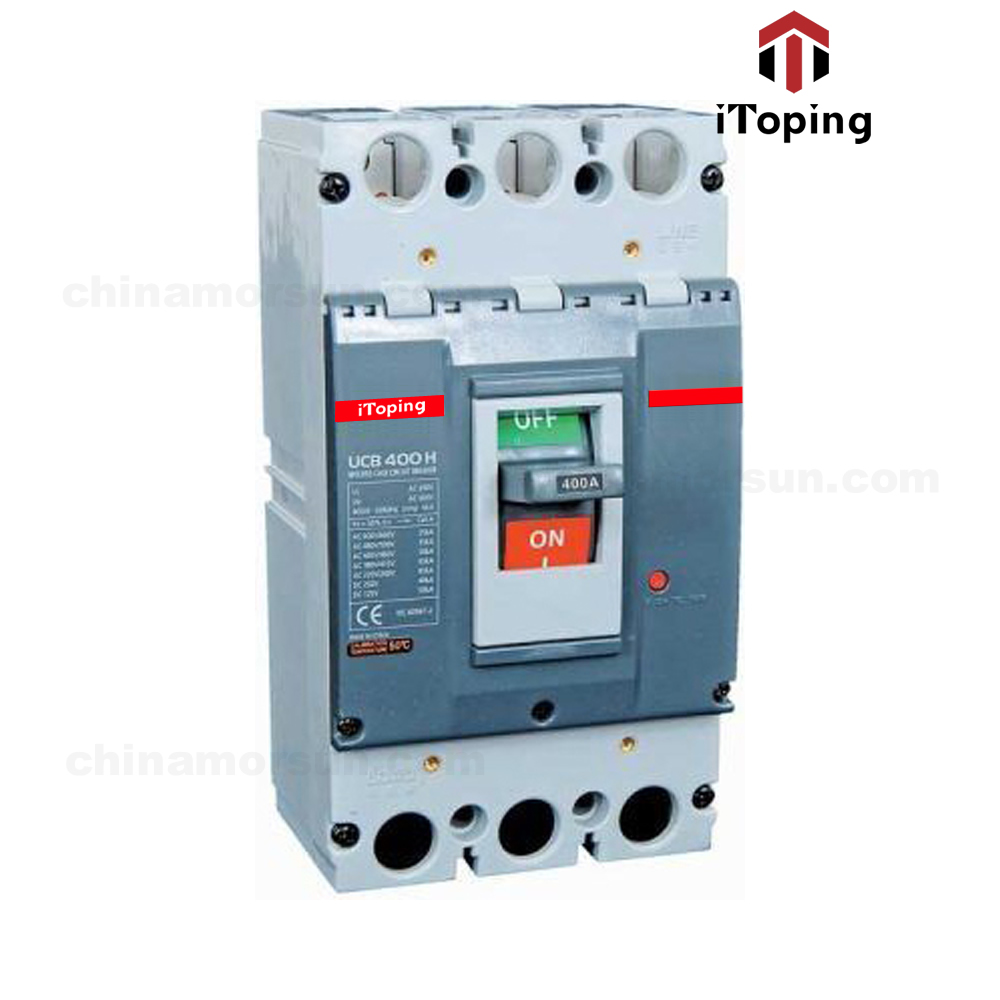

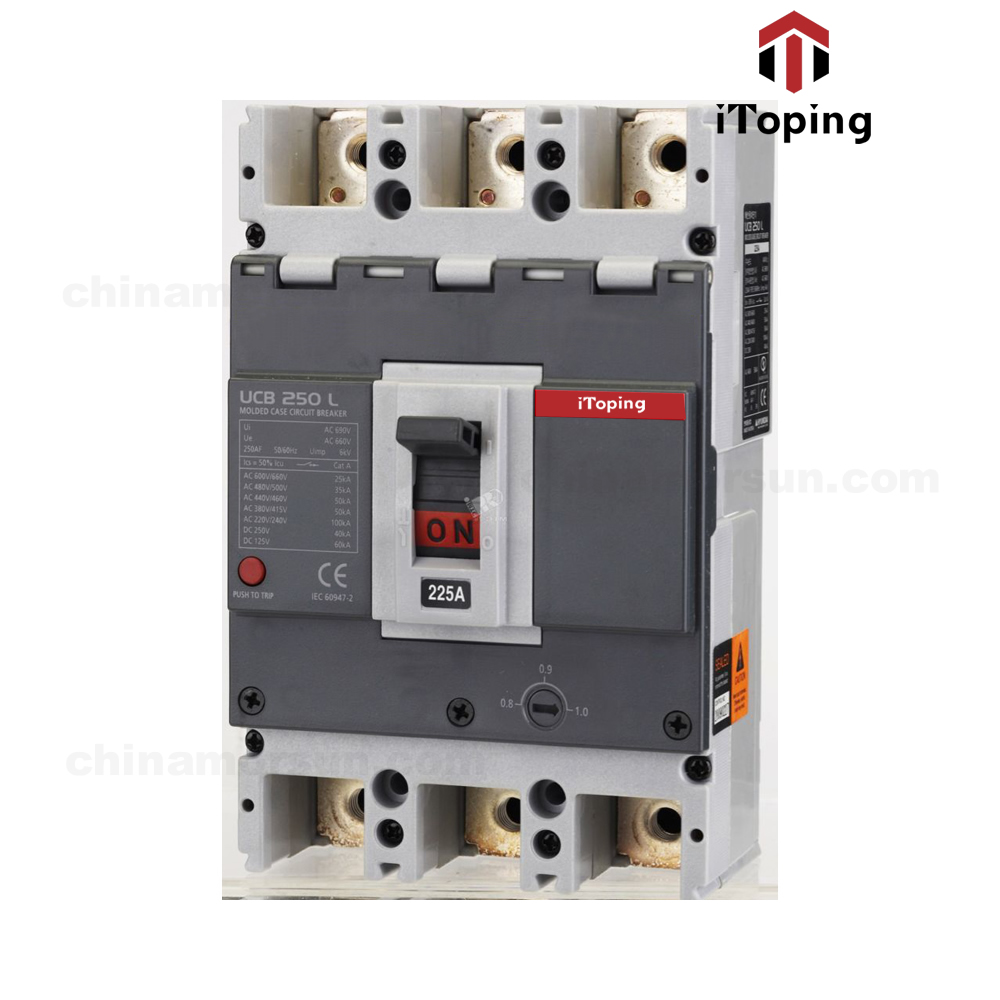

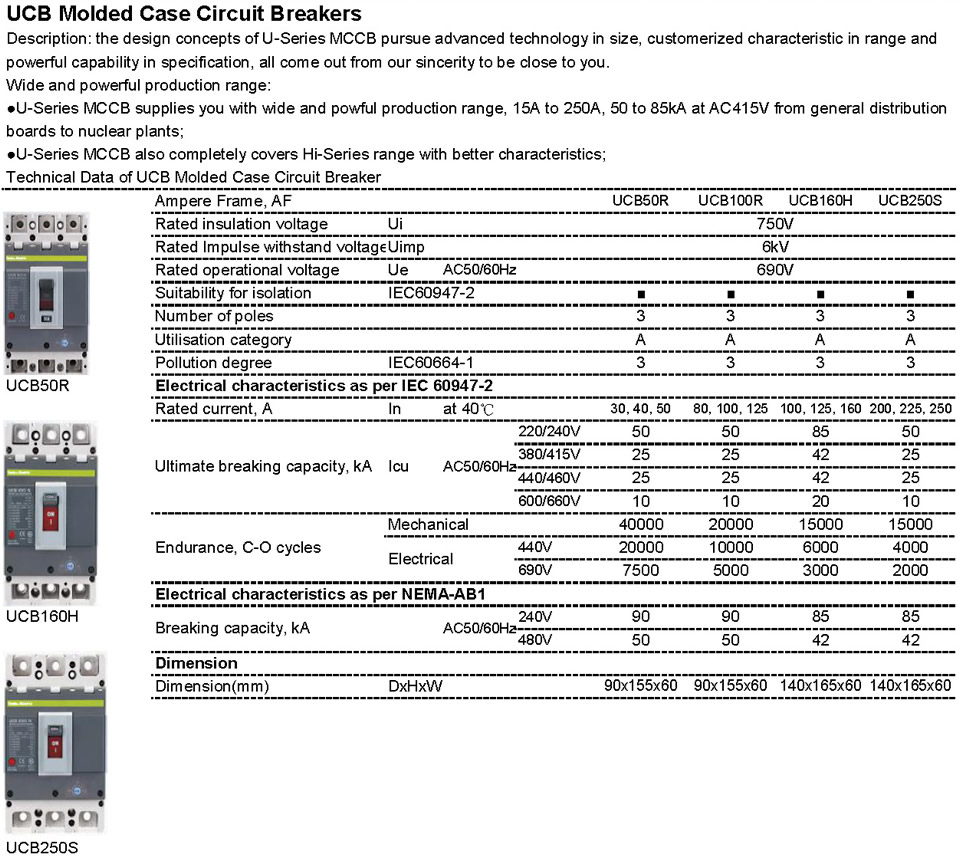

The design concepts of UCB-Series Molded Case Circuit Breakers pursue advanced technology in size, customized characteristic in range and powerful capability in specification, all come out from our sincerity to be close to you with the following features:
¦ High breaking capacity in 60mm depth, up to 250AF;
¦ Application of current-limiting technology;
¦ Up to 50kA at AC380/415V in W90/105xH165xD60mm
¦ 50, 125, 250, 400, 630AF
¦ Fixed thermal trip mechanism up to 630AF;
