•  Products >> DB90 Incoming Circuit Breakers

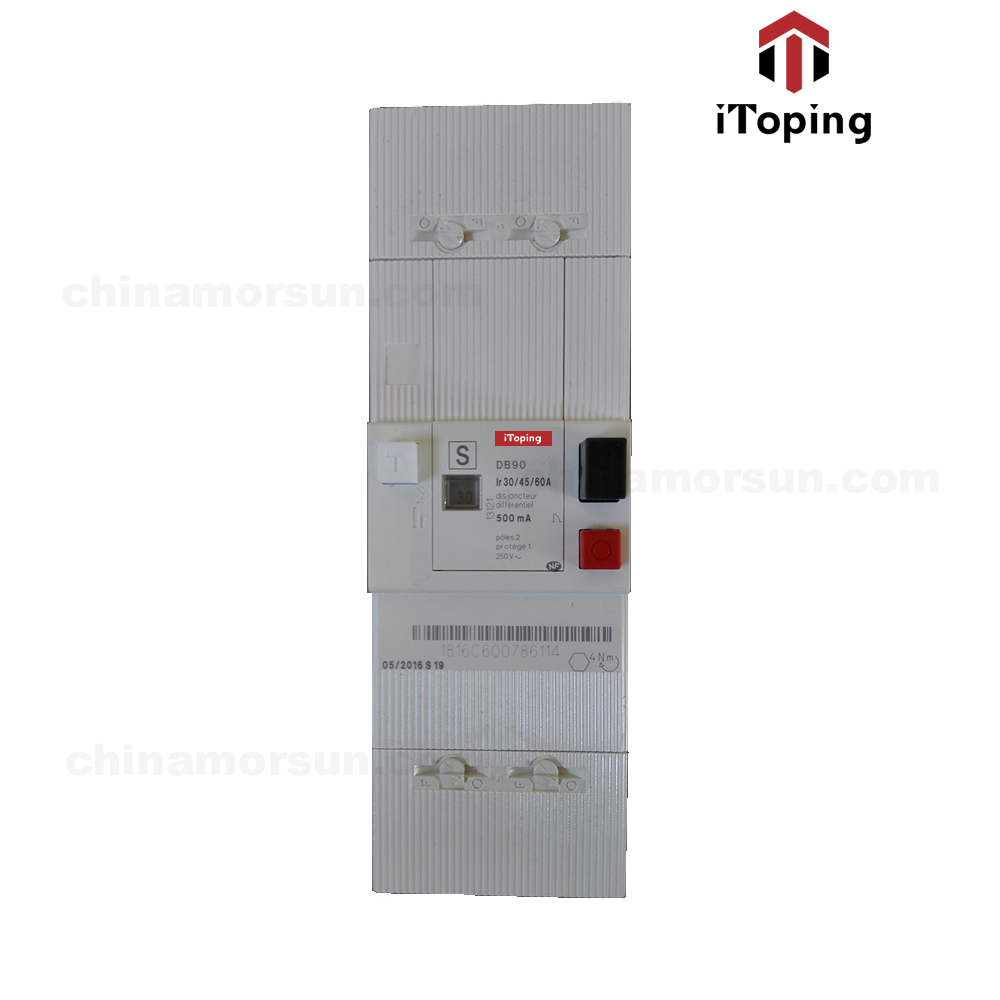

Product name:DB90 Incoming Circuit Breakers

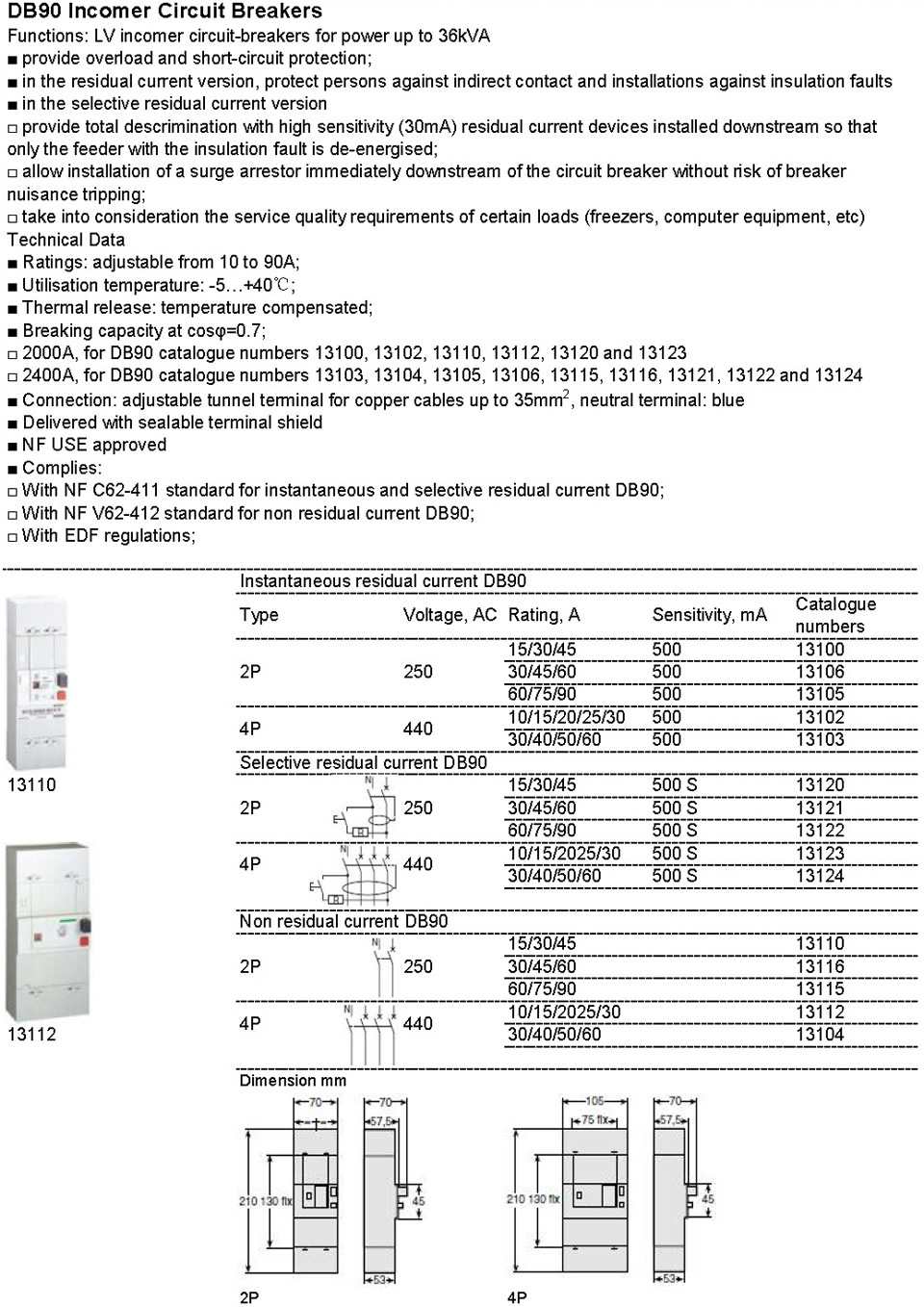

DB90 series incoming current breakers are used in both residential and commercial buildings with the following functions:
¦? LV incomer circuit breakers for power up to 36kVA;
¦? Provide overload and short circuit protection;
¦? In the residual current version, protect persons against indirect contact and installations against insulation faults;
¦? Ratings: adjustable from 10A to 90A;
¦ Utilisation temperature: -5 to +40?;
¦ Thermal release: temperature compensated;
¦ Breaking capacity at cos?=0.7;
¦ Connection: adjustable tunnel terminal for copper cables up to 35mm square, neutral terminal is blue;
¦? Delivered with sealable terminal shield;
¦? NF use approved;
