Application                         MSM75SC-U
     The MSM75SC-U series energy meters are DIN rail single phase two wire active electronic energy meters. The energy meters adopt many advanced technologies of research and development, like microelectronic-techniques, specialized large-scale IC (integrated circuit), digital sampling and processing technology, SMT technique, and so on.  MSM75SC-U series energy meters technical performances completely conform to International Standards IEC 62053-21 for Class 1 single phase active energy meter.  MSM75SC series energy meters can directly and accurately measure the load active energy consumption in the single phase AC networks of rated frequency 50Hz or 60Hz. And there are far infrared and RS485 communication module in it. MSM75SC-U series energy meters series have multiple types for option, to be suitable with the various market demands.  MSM75SC-U series energy meters have features with excellent long-term reliability, small volume, light weight, perfect appearance, easy installation, etc.This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. ZL 2013 3 0556103.2, , any other country patent certificate are in assessing.

Functions and features
v MSM75SC-U series electricity meter ;  35mm standard DIN rail installation , complying with standard  DIN EN50022.
v MSM75SC-U series electricity meter ; Six pole width (Modulus 12.5mm), complying with standard    JB/T7121-1993.

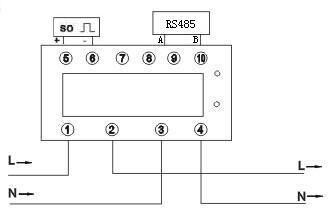

v MSM75SC-U series electricity meter ; Type S wiring (Type U).
v MSM75SC-U series electricity meter ; Eight digits display LCD, 6+2 digits display (999999.99 kWh) .
v MSM1250SC-U series electricity meter ; There are a polarity port of pulse output passive closed and a nonpolarity port of pulse output passive distant . Complying with standard IEC 62053-31 and DIN 43864.
v MSM75SC-U series electricity meter ; Five LED instructions respectively every power supply state, signal of closed energy impulse and distant energy impulse and data communication state.
v MSM75SC-U series electricity meter ; Standard configuration there are a port of far infrared data communication and aportofRS485data communication. Communication agreement complying with standard DL/T645-1997and MODBUS-DRT, can also choose without function of data communication.
v MSM75SC-U series electricity meter ; Automatic detection the direction of the flow of load current. And Instructions on individual LCD
v MSM75SC-U series electricity meter ; Single direction Single components measure single phase two wire active energy consumption. It is nothing with direction of the flow of load current. Complying with standard IEC 62053-21.

v MSM75SC-U series electricity meter ; Standard configuration short terminals cover, may select extension terminals cover, in order to protect to use safety.

* If you need different reference voltage or current specification, please advisory our sales personnel.
